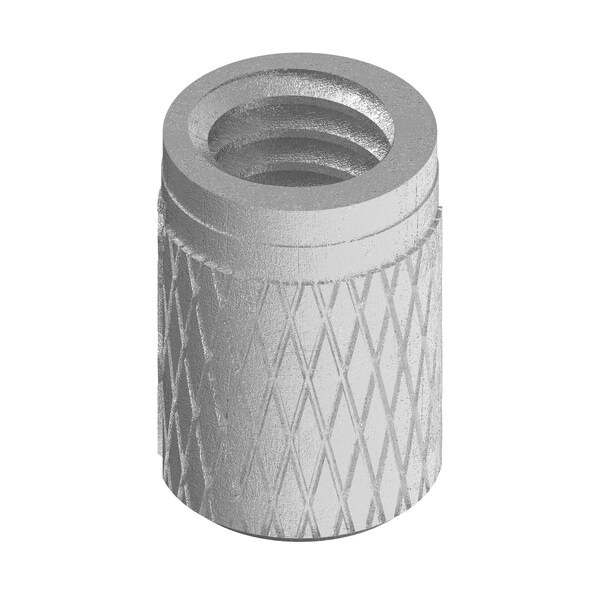

Press Insert, 5/16"-18 Int Thrd Sz, 9/16 in L, 25/64 in Dia., Aluminum, Plain, 10 PK
Mfr # 240-5-AL-PK10
Zoro # G609228321
CAD Available
product price:Â $5.39
/pk 10, $0.54/eaKey Features
CAD Drawing
Internal Thread Size
5/16"-18
Material
Aluminum
Flange Style
Flush
Insert Diameter
25/64 in
Overall Length
9/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
240-5-AL-PK10
Zoro #
G609228321
UPC #
847554042137
Country of Origin
United States
Dimensions
Internal Thread Size
5/16"-18
Insert Diameter
25/64 in
Overall Length
9/16 in
Drill Bit Size
3/8 in
Maximum Hole Diameter
0.375 in
Minimum Material Thickness
9/16 in
Details
CAD Available
Yes
Item
Press Insert
Material
Aluminum
Flange Style
Flush
Finish
Plain
Thread Type
UNC
Installation Method
Arbor Press
Compatible Material
Plastic
Body Texture
Knurled
System of Measurement
Inch
Thread Direction
Right Hand
Material Grade/Class
2024
Features
RoHS Compliant
Description
Press Insert, Insert Type Knurled Press Insert, System of Measurement Inch, Overall Length 9/16 in, Insert Diameter 25/64 in, Thread Size 5/16 In.-18, Thread Direction Right Hand, Thread Type Coarse, Material Aluminum, Material Grade/Class 2024, Finish Plain, Flange Style Flush, Body Texture Knurled, Number of Fins Not Applicable, Compatible Material Plastic, Drill Bit Size 3/8 in, Minimum Material Thickness 9/16 in, Maximum Hole Diameter 0.375 in, Features RoHS Compliant
