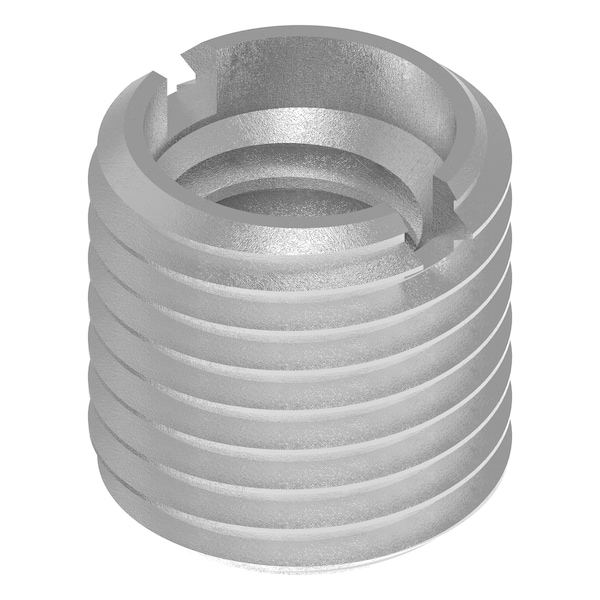

Thin Wall Self Locking Thread Insert, 5/16"-18 Int Thrd Sz, 18-8 Stainless Steel, 5 PK

  • Mfr # 313-5-PK5

  • Zoro # G509228261

CAD Available
product price:  $18.45
/pk 5, $3.69/ea

Key Features

CAD Drawing
Internal Thread Size
5/16"-18
Material
18-8 Stainless Steel
Overall Length
7/16 in
Insert Diameter
7/16 in
External Thread Size
7/16"-20
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
313-5-PK5
Zoro #
G509228261
UPC #
847554009857
Country of Origin
United States

Dimensions

Internal Thread Size
5/16"-18
Overall Length
7/16 in
Insert Diameter
7/16 in
External Thread Size
7/16"-20
Drill Bit Size
25/64 in
Minimum Installation Depth
1/2 in
Maximum Hole Diameter
0.391 in
Compatible Tap Size
7/16"-20

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
18-8 Stainless Steel
Wall Type
Thin Wall
Thread Type
UNC
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
100,000 psi
Brinell Hardness
228
Finish
Plain
Compatible Material
Metal
Features
Pre-Applied Adhesive
Full Cure Time
72 hr
System of Measurement
Inch
Drive Type
Slotted
Compatible with Manufacturer Model Number
500-3
External Thread Fit
2A
Internal Thread Fit
2B
Thread Direction
Right Hand
Compatible Manufacturer Part Number
500-3
Compatible Manufacturer Model Number
500-3
For Use With Mfr. Model Number
500-3
Compatible with Manufacturer Model No.
500-3
Compatible with Mfr. Model No.
500-3
For Use with Mfr Model Number
500-3
Compatible Pump Manufacturer Part Number
500-3
Compatible Mfr. Model Number
500-3
Tensile Strength
100,000 psi
Material Grade/Class
18-8
Series
313
For Manufacturer Part Number
500-3
Compatible with Mfr. Model Number
500-3

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 7/16 In.-20, Drill Bit Size 25/64, External Thread Fit 2A, External Thread Size 7/16 In.-20, Finish Plain, Insert Diameter 7/16 in, Internal Thread Fit 2B, Internal Thread Size 5/16 In.-18, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.391 in, Minimum Installation Depth 1/2 in, Overall Length 7/16 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
