  9. Pressure Gauge, 0 to 5000 psi, 1/4 in MNPT, Plastic, Black

This item is Discontinued.

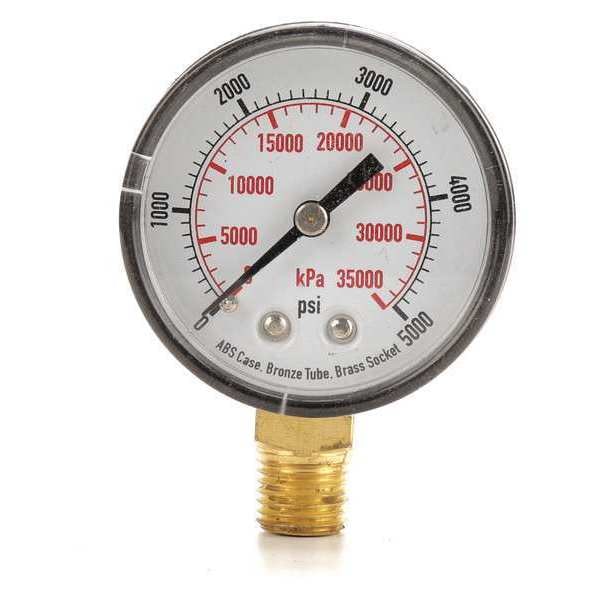

Zoro Select Pressure Gauge, 0 to 5000 psi, 1/4 in MNPT, Plastic, Black 4FLV2

Pressure Gauge, 0 to 5000 psi, 1/4 in MNPT, Plastic, Black (Discontinued)

  • Mfr # 4FLV2
  • Zoro # G0045482
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4FLV2
Zoro #
G0045482
UPC #
190735507193
Country of Origin
China

Dimensions

Connection Size
1/4 in NPT
Dial Size (In.)
2
Gauge Connection Size
1/4 in
Gauge Nominal Dial Size
2 in
Process Connection Size
1/4 in
Nominal Dial Size
2 in

Details

Connection Location
Bottom
Item
Commercial Pressure Gauge
For Use With
Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators
Gauge Application
Test
Range
0 to 35,000 kPa, 0 to 5000
Accuracy
+/-3-2-3%
Material
ABS plastic
Color
Black
Gauge Primary Range Values
0 to 5000
Gauge Primary Range Units
psi
Gauge Connection Type
MNPT
Basic Gauge Case Material
Plastic
Case Color
Black
Gauge Connection Location
Bottom
Smallest Graduation
100 psi
Liquid Filled
No
Gauge Panel Mountable
No
Gauge Socket Material
Brass
Max. Pressure (PSI)
5000
Operating Temp. Range
-40 Degrees to 150 Degrees F
Gauge Secondary Range Units
kPa
Pressure and Vacuum Gauge Type
Pressure Gauge
Gauge Lens Material
Acrylic
Basic Gauge Socket Material
Brass
Basic Gauge Lens Material
Plastic
Gauge Case Color
Black
Basic Gauge Wetted Parts
Brass / Bronze
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 35,000
Basic Gauge Sensor Material
Bronze
Gauge Primary Range Smallest Graduation
100
Gauge Sensor Material
Bronze
Gauge Accuracy
+/-3-2-3%
Gauge Case Material
ABS Plastic
Socket Material
Brass
Includes Vent Plug
No
Cleaned for Oxygen Service
No
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Panel-Mountable
No
Primary Scale Minor Graduations
1, 2
Secondary Range
0 to 35,000 kPa
Dry Dampening Feature
None
IP/NEMA Rating
Not Rated
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Liquid-Filled Case
No
Removable Bezel
No
Primary Scale Units
psi
Bezel Material
Crimped Stainless Steel
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Field Fillable
No
Sensor Material
Bronze
Case Material - Gauge
Plastic
Secondary Scale Units
kPa
Gauge Wetted Parts
Brass / Bronze
Process Connection Type
NPT
Primary Pressure Range
0 to 5,000
Freeze Resistant Movement
No
Gauge Case Liquid
None
Secondary Pressure Range
0 to 35,000
Non-Sparking
No
Pressure Range Type
Pressure
Lens Material - Gauge
Plastic
Blowout Safety Back
No
Hazardous Location Rating
Not Rated
Lens Material
Acrylic
Process Connection Location
Bottom
Scale Type
Dual
Accuracy Scale
Mid-Scale
Vibration Resistance
None
Dial Color
White
Process Connection Gender
Male
Primary Graduations
1, 2

Description

Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 5,000, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type General Purpose Dial Pressure Gauge
