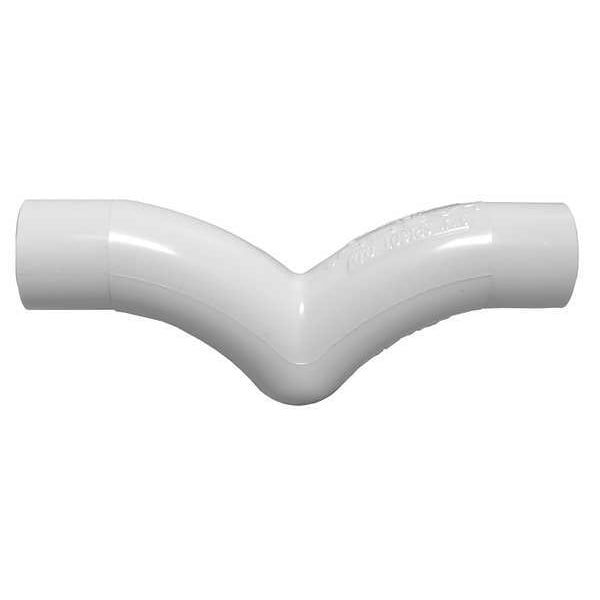

PVC, White Finish, HVAC Running Trap

product price: $3.65
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material of Construction PVC
  • Color/Finish White
  • Compliance ASTM
  • Pipe Size (Fittings) 1/2"
  • Fittings Sub-Category Traps
See all product information

Product Information

Dimensions

Pipe Size (Fittings) 1/2"
Pipe Fitting Length 5"
Fitting Length 5"
Pipe Size - Pipe Fitting 1/2"
Length In. 5"
Fitting Side A Nominal Pipe Size 1/2 in
Fitting Side A Outside Diameter 1 in
Overall Length 5 in
Fitting Side B Outside Diameter 1 in
Fitting Side B Nominal Pipe Size 3/4 in

Details

Item HVAC Running Trap
Material of Construction PVC
Color/Finish White
Compliance ASTM
Fittings Sub-Category Traps
Pipe Fitting Schedule/Class Schedule 40
Fitting Connection Type Socket x Spigot
Color White
Basic Fitting Shape Trap
Basic Pipe Fitting Shape Trap
Basic Pipe Fitting Material Plastic
Specific Pipe Fitting Shape P-Trap
Max. Temp. 140 Degrees F
Pipe Fitting Material PVC
Fitting Schedule/Class Schedule 40
Standards NSF 61, NSF 14
Specific Fitting Shape P-Trap
Connection Slip x Spigot
Temp. Range 32 Degrees to 140 Degrees F
Application Potable Water
Green Certification or Other Recognition NSF(R) Certified (Sustainability or Environmental Standard)
Pipe Dia In. 1/2"
Low Lead Certified Standard NSF 61; NSF 14
Fitting Side B Type Spigot
Fitting Side B Gender Male
Low Lead Compliance Level Certified
Schedule Schedule 40
Includes Seal No
Fitting Side A Type Socket
Maximum Operating Pressure 480 psi
Includes Pre-Applied Thread Sealant No
Includes Plug No
Includes Shield No
For Pipe Schedule 40
Fitting Side A Gender Female

Description

P-Trap, PVC, Schedule 40, For Pipe Schedule 40, 1/2 in, Female, Socket, 1 in, 3/4 in, Male, Spigot, 1 in, Includes Seal No, 5 in Overall Length, 480 psi Maximum Operating Pressure, 32 Degrees to 140 Degrees F
