Shop All Plate Casters
Zoro Select

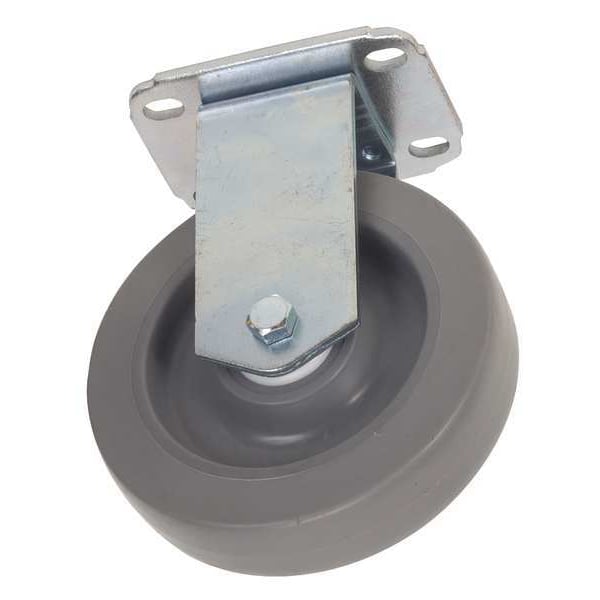

Rgd NSF-Listed Plate Castr, Therm Rubber, 4 in, 165 lb

product price: $9.79
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Sub-Type Rigid
  • Caster Load Rating Range Light-Duty
  • Caster Product Group Rigid Caster
  • Caster Wheel Shape Standard
See all product information

Product Information

Dimensions

Wheel Dia. 4 in
Wheel Width 1 1/4 in
Overall Height 5-1/8"
Mounting Height 5 1/8 in
Mounting Plate Size 2 3/4 in x 3 3/4 in
Mounting Bolt Dia. 5/16 in
Caster Plate Size 2-3/4" x 3-3/4"
Plate Size 2-3/4" x 3-3/4"

Details

Caster Brake Included No
Item NSF-Listed Sanitary Plate Caster
Caster Sub-Type Rigid
Caster Load Rating Range Light-Duty
Caster Product Group Rigid Caster
Caster Wheel Shape Standard
Load Rating 165 lb
Caster Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Hardness Rating Soft
Wheel Bearing Type Delrin
Mounting Plate Bolt Hole Pattern C
Inside Bolt Hole Spacing 1-3/4 in x 2-5/8 in
Outside Bolt Hole Spacing 1-3/4 in x 3 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Plastic
Core Color Gray
Standards NSF Listed
Caster Plate Hole Pattern C
Frame Material Steel
Caster Temp. Range Available No
Caster Swivel Lock Type No Lock Included
Durometer 75 Shore A
Caster Wheel Bearings Delrin
Replacement Wheel 1KA95
Caster Plate Thickness 5/32"
Wheel Color Gray
Caster Core Material Polyolefin
Thread Guards No
Plate Thickness 5/32"
Plate Caster Bolt Hole Pattern C
Load Rating Range 0 to 299 lb
Tread Shape Standard
Wheel/Tread Hardness 75 Shore A
Includes Thread Guards No
Wheel/Tread Color Gray

Description

Rigid, NSF-Listed Sanitary Plate Caster, Load Rating 165 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
