  11. Rgd NSF-Listed Plate Cstr, Polyurethane, 4 in, 375 lb.
Shop All Plate Casters
Zoro Select

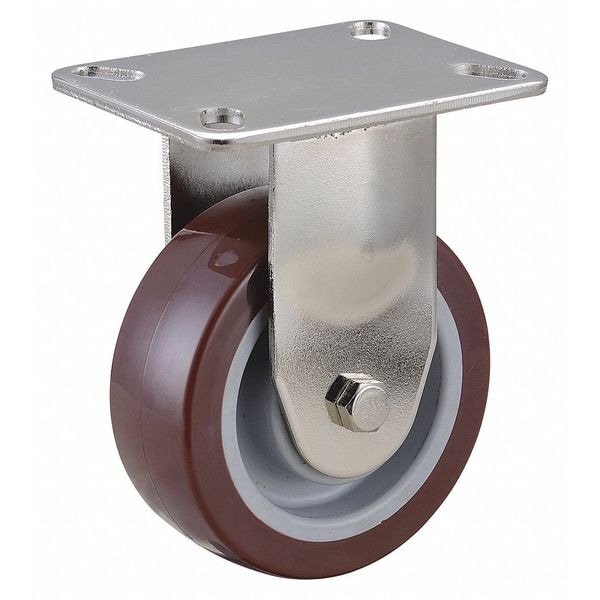

Rgd NSF-Listed Plate Cstr, Polyurethane, 4 in, 375 lb.

original price: $15.09
6% off
new price: $14.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Medium Duty
  • Caster Sub-Type Rigid
  • Caster Product Group Rigid Caster
  • Load Rating 375 lb
See all product information

Product Information

Dimensions

Wheel Dia. 4 in
Wheel Width 1 1/2 in
Overall Height 5-3/16"
Mounting Height 5 3/16 in
Mounting Plate Size 3 1/8 in x 4 1/8 in
Mounting Bolt Dia. 5/16 in
Plate Size 3-1/8" x 4-1/8"
Caster Plate Size 3-1/8" x 4-1/8"

Details

Item NSF-Listed Sanitary Plate Caster
Caster Brake Included No
Caster Load Rating Range Light-Medium Duty
Caster Sub-Type Rigid
Caster Product Group Rigid Caster
Load Rating 375 lb
Caster Wheel Shape Standard
Caster Wheel/Tread Material Polyurethane
Wheel/Tread Material Polyurethane
Wheel/Tread Hardness Rating Firm
Wheel Bearing Type Delrin
Mounting Plate Bolt Hole Pattern A
Inside Bolt Hole Spacing 1-3/4 in x 3 in
Outside Bolt Hole Spacing 2-3/8 in x 3-3/8 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Nickel Plated
Caster Frame Material Steel
Wheel Core Material Plastic
Core Color Gray
Application Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Standards NSF Listed
Caster Plate Thickness 5/32"
Plate Caster Bolt Hole Pattern A
Caster Min. Temp. -40 Degrees F
Caster Max. Temp. 175 Degrees F
Extended Lead No
Thread Guards No
Caster Wheel Bearings Delrin
Plate Thickness 5/32"
Wheel Color Maroon
Durometer 95 Shore A
Caster Temp. Range -40 Degrees to 175 Degrees F
Caster Core Material Polyolefin
Replacement Wheel IX04105206G
Caster Plate Hole Pattern A
Caster Swivel Lock Type No Lock Included
Caster Temp. Range Available Yes
Frame Material Steel
Tread Shape Standard
Includes Thread Guards No
Load Rating Range 300 to 999 lb
Wheel/Tread Hardness 95 Shore A
Swivel Construction Kingpinless
Wheel/Tread Color Maroon

Description

Rigid, NSF-Listed Sanitary Plate Caster, Load Rating 375 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
