  11. Rgd Plate Caster, Rubber, 4 in., 400 lb.

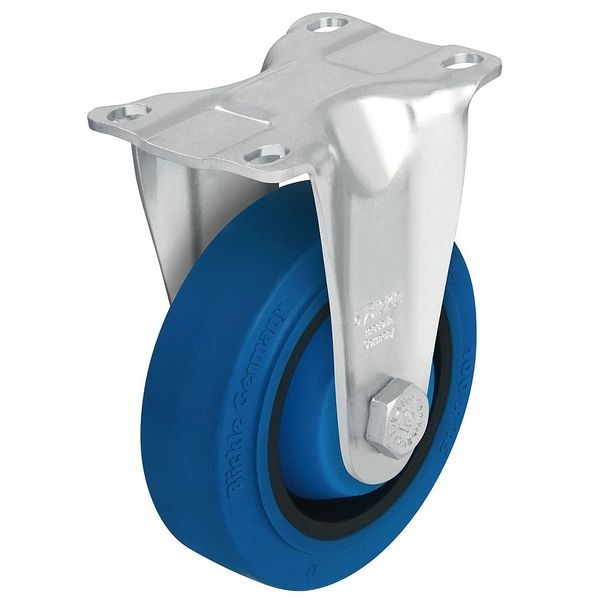

Zoro Select Rgd Plate Caster, Rubber, 4 in., 400 lb. B-POEV 102KA-12-SB - main

Rgd Plate Caster, Rubber, 4 in., 400 lb.

  • Mfr # B-POEV 102KA-12-SB

  • Zoro # G7009484

product price: $44.89
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B-POEV 102KA-12-SB
Zoro #
G7009484
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 1/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
9 mm
Overall Height
5-1/8in
Mounting Plate Length
3 5/8 in
For Axle Dia.
8 mm
Outside Slot Spacing - Width
1.75 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Width
2 1/2 in
Inside Slot Spacing - Length
2.813 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
400 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Blue
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Thread Guards
Yes
Caster Temp. Range Available
No
Features
American Standard Plate Size
Replacement Wheel
Mfr. No. POEV 101/10K-SB
Extended Lead
No
Wheel Color
Blue
Caster Brake Included
No
Frame Finish
Zinc Plated
Application
Retail, Industrial, Commercial
Load Rating Range
Light-Medium Duty
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Includes Thread Guards
Yes
Wheel Core Material
Nylon
Tread Color
Blue
Tread
Standard
Standards
RoHS, ICWM
Load Capacity
400 lb
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
ESD Conductive
No
Series
B Series
Load Capacity - Maximum
440 lb
Compatible With
POEV 101/10K-SB-FK
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Caster Features
Debris-Resistant
Mounting Hole Type
Slot
Wheel Core Type
Solid
Operating Temperature Range
-15 Degrees To 175 Degrees F

Description

Rigid, Plate Caster, Load Rating 400 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
