  11. Rgd Plate Castr, Therm Rubber, 2 in, 110 lb
Zoro Select Rgd Plate Castr, Therm Rubber, 2 in, 110 lb BPXA-TPA 50G - main

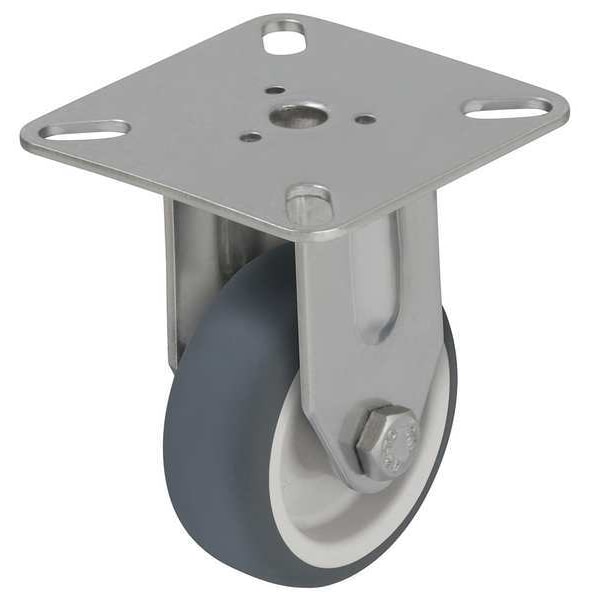

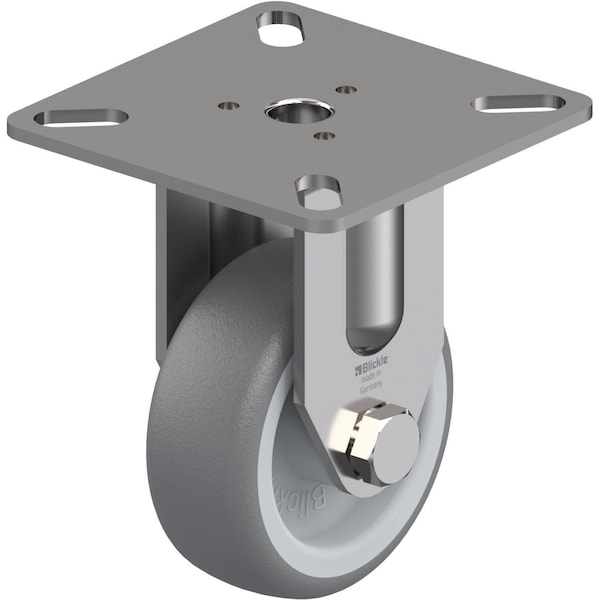

Rgd Plate Castr, Therm Rubber, 2 in, 110 lb

  • Mfr # BPXA-TPA 50G

  • Zoro # G4566545

product price: $21.79
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BPXA-TPA 50G
Zoro #
G4566545
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
2 in
Wheel Width
3/4 in
Mounting Height
2 13/16 in
Mounting Plate Size
2-3/8in x 2-3/8in
Mounting Plate Thickness
3/32in
Mounting Bolt Dia.
7/32 in
Overall Height
2-13/16in
Mounting Plate Width
60 mm
For Axle Dia.
6 mm
Bolt Hole Spacing - Length
1.5 in
Overall Wheel Width
3/4 in
Mounting Plate Length
60 mm
Inside Slot Spacing - Length
38 mm
Outside Slot Spacing - Length
48 mm
Inside Slot Spacing - Width
38 mm
Outside Slot Spacing - Width
48 mm

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
110 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Crown
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
48 mm x 48 mm
Inside Bolt Hole Spacing
38 mm x 38 mm
Caster Plate Hole Pattern
A
Caster Temp. Range Available
No
Thread Guards
No
Caster Brake Included
No
Replacement Wheel
Mfr. No. TPA 50/8G
Wheel Color
Gray
Frame Finish
Stainless Steel
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Extended Lead
No
Standards
RoHS, ICWM, NSF
Wheel Core Material
Polypropylene
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Load Rating Range
Medium-Duty
Wheel/Tread Hardness Rating
Soft
Load Capacity
50 kg
Tread
Standard
Tread Color
Gray
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
BPXA Series
Load Capacity - Maximum
110 lb
Compatible With
TPA 50/8G
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Caster Features
Corrosion-Resistant
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Rigid, Plate Caster, Load Rating 110 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 3/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
