  11. Rgd Plate Castr, Therm Rubr, 4 in., 242 lb.

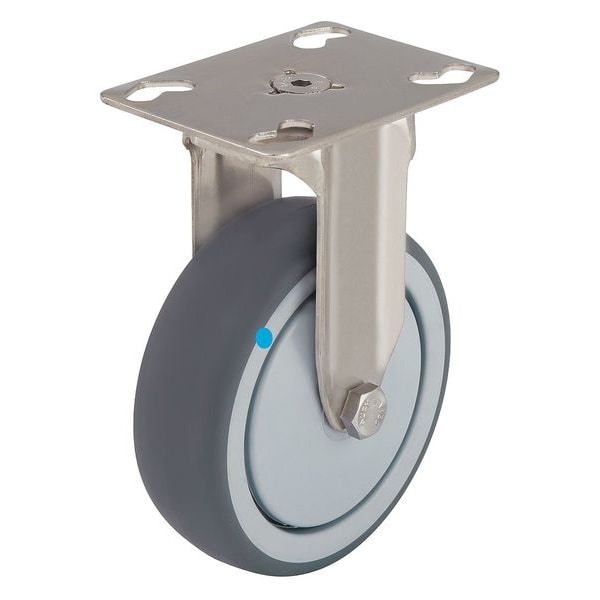

Zoro Select Rgd Plate Castr, Therm Rubr, 4 in., 242 lb. BKPXA-TPA 101G - main

Rgd Plate Castr, Therm Rubr, 4 in., 242 lb.

  • Mfr # BKPXA-TPA 101G

  • Zoro # G0385677

product price: $42.75
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BKPXA-TPA 101G
Zoro #
G0385677
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 in
Wheel Width
1 1/4 in
Mounting Height
5 3/8 in
Mounting Plate Size
2-5/8in x 3-9/16in
Mounting Plate Thickness
3/32in
Mounting Bolt Dia.
5/16 in
Overall Height
5-3/8in
Outside Slot Spacing - Width
51 mm
Bolt Hole Spacing - Length
2.969 in
Overall Wheel Width
1 1/4 in
Mounting Plate Width
66 mm
For Axle Dia.
8 mm
Inside Slot Spacing - Length
61 mm
Inside Slot Spacing - Width
45 mm
Outside Slot Spacing - Length
75 mm
Mounting Plate Length
90 mm

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Metric
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
240 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Gray
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 2-15/16 in
Inside Bolt Hole Spacing
2 in x 2-3/8 in
Caster Plate Hole Pattern
B
Wheel Color
Gray
Standards
RoHS, ICWM, NSF
Frame Finish
Stainless Steel
Extended Lead
No
Replacement Wheel
Mfr. No. TPA 101/12G
Features
Corrosion Resistant
Caster Temp. Range Available
No
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Thread Guards
No
Caster Brake Included
No
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Wheel Core Material
Nylon
Load Rating Range
Medium-Duty
Swivel Lock Type
No Lock Included
Load Capacity
110 kg
Tread
Standard
Tread Color
Gray
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Series
BKPXA Series
Caster Features
Corrosion-Resistant
Compatible With
TPA 101/12G
Load Capacity - Maximum
245 lb
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Rigid, Plate Caster, Load Rating 240 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
