  6. Rgd Plate Castr, Therm Rubr, 5 in., 264 lb.

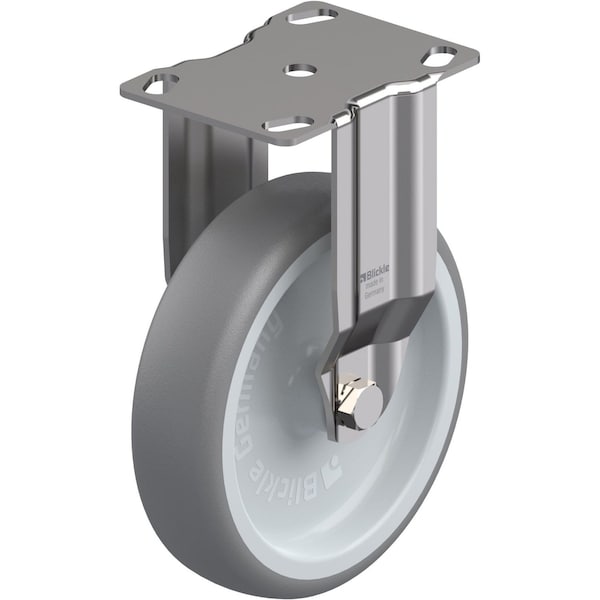

Zoro Select Rgd Plate Castr, Therm Rubr, 5 in., 264 lb. BKPXA-TPA 126G - main

Rgd Plate Castr, Therm Rubr, 5 in., 264 lb.

  • Mfr # BKPXA-TPA 126G

  • Zoro # G0385817

product price:  $41.99
/ea

Key Features

Wheel Width
1 1/4 in
Wheel Dia.
5 in
Caster Frame Material
Stainless Steel
Core Color
Gray
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BKPXA-TPA 126G
Zoro #
G0385817
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
1 1/4 in
Wheel Dia.
5 in
Mounting Bolt Dia.
5/16 in
Overall Height
6-3/8in
Mounting Height
6 5/8 in
Mounting Plate Size
2-5/8in x 3-9/16in
Mounting Plate Length
90 mm
Inside Slot Spacing - Length
61 mm
For Axle Dia.
8 mm
Mounting Plate Width
66 mm
Outside Slot Spacing - Width
51 mm
Inside Slot Spacing - Width
45 mm
Overall Wheel Width
1 1/4 in
Bolt Hole Spacing - Length
2.969 in
Outside Slot Spacing - Length
75 mm
Mounting Plate Thickness
3/32in

Details

Caster Frame Material
Stainless Steel
Core Color
Gray
Caster Brake Included
No
Replacement Wheel
Mfr. No. TPA 126/12G
Caster Sub-Type
Rigid
Item
Rigid Caster
Application
Food Service, Medical and Institutional Equipment
Frame Finish
Stainless Steel
Wheel Color
Gray
Outside Bolt Hole Spacing
45 mm x 75 mm
Standards
DIN EN 12546, ISO 14001, ISO 5001, ISO 9001
Caster Temp. Range Available
No
Extended Lead
No
Features
Corrosion Resistant
Caster Plate Hole Pattern
B
Number of Wheels
1
Inside Bolt Hole Spacing
61 mm x 61 mm
Load Rating
265 lb
Thread Guards
No
Includes Thread Guards
No
Tread Shape
Standard
Wheel/Tread Hardness Rating
Soft
Non-Marking
Yes
Wheel Bearing Type
Plain
Caster Brake Type
No Brake
Number of Mounting Holes
4
Load Rating Range
Medium-Duty
Wheel Core Material
Nylon
Swivel Lock Type
No Lock Included
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Load Capacity
120 kg
Caster Mounting Type
Plate
Tread
Standard
Tread Color
Gray
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
System of Measurement
Metric
Series
BKPXA Series
ESD Conductive
No
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
660 lb
Compatible With
TPA 126/12G
Wheel Hardness Rating
85 Shore A
Wheel Core Type
Solid
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature Range
-20 Degrees To 60 Degrees C

Description

Rigid, Plate Caster, Load Rating 265 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
