  11. Rgd Plate Cstr, Polyurethane, 4 in, 250 lb.
Shop All Plate Casters
Zoro Select

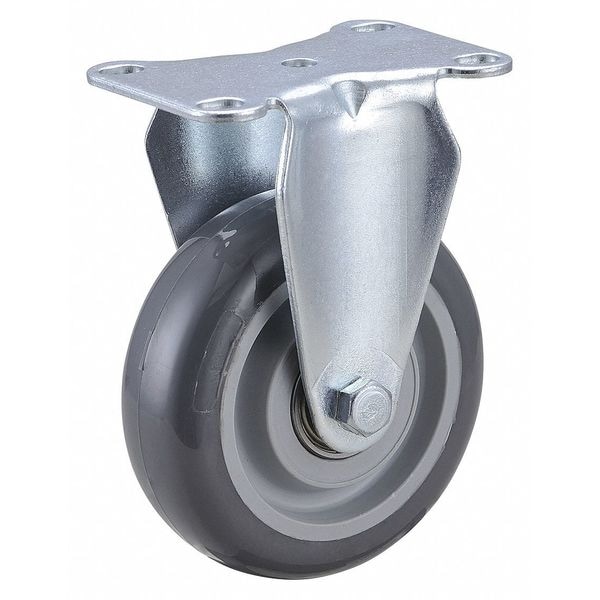

Rgd Plate Cstr, Polyurethane, 4 in, 250 lb.

product price: $9.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Load Rating Range Light-Duty
  • Caster Sub-Type Rigid
  • Caster Product Group Rigid Caster
  • Caster Wheel Shape Crown
See all product information

Product Information

Dimensions

Wheel Dia. 4 in
Wheel Width 1 1/4 in
Overall Height 5-3/16"
Mounting Height 5 3/16 in
Mounting Plate Size 2 1/2 in x 3 5/8 in
Mounting Bolt Dia. 5/16 in
Plate Size 2-1/2" x 3-5/8"
Caster Plate Size 2-1/2" x 3-5/8"

Details

Item Standard Plate Caster
Caster Brake Included No
Caster Load Rating Range Light-Duty
Caster Sub-Type Rigid
Caster Product Group Rigid Caster
Caster Wheel Shape Crown
Load Rating 250 lb
Caster Wheel/Tread Material Polyurethane
Wheel/Tread Material Polyurethane
Wheel/Tread Hardness Rating Firm
Wheel Bearing Type Precision Ball
Mounting Plate Bolt Hole Pattern C
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Outside Bolt Hole Spacing 1-3/4 in x 3-1/16 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Plastic
Core Color Gray
Application Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Standards ANSI/ICWM
Includes Thread guards
Caster Max. Temp. 175 Degrees F
Frame Material Steel
Caster Core Material Polypropylene
Caster Wheel Bearings Ball
Caster Min. Temp. -40 Degrees F
Plate Caster Bolt Hole Pattern C
Caster Plate Hole Pattern C
Caster Temp. Range Available Yes
Caster Plate Thickness 1/8"
Thread Guards No
Extended Lead No
Wheel Color Gray
Caster Swivel Lock Type No Lock Included
Plate Thickness 1/8"
Durometer 95 Shore A
Caster Temp. Range -40 Degrees to 175 Degrees F
Load Rating Range 0 to 299 lb
Tread Shape Standard
Includes Thread Guards No
Wheel/Tread Hardness 95 Shore A
Swivel Construction Kingpinless
Wheel/Tread Color Gray

Description

Rigid, Standard Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
