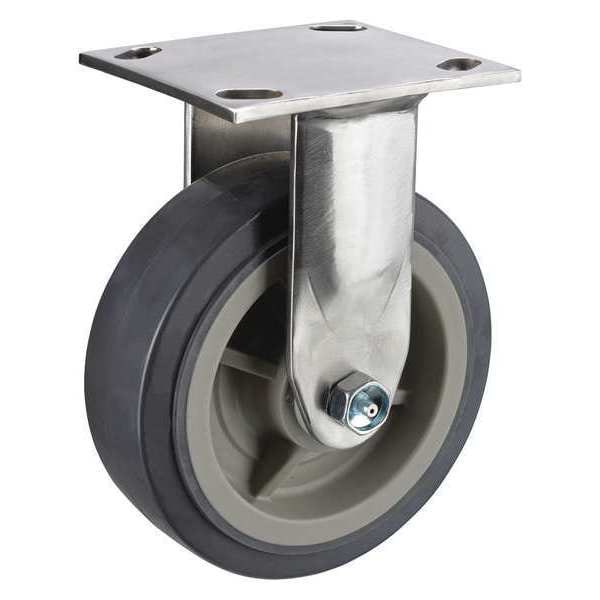

Zoro Select Rgd Plate Cstr, Polyurethane, 6 in, 900 lb. P21RX-UP060D-14 - main

Rgd Plate Cstr, Polyurethane, 6 in, 900 lb.

  • Mfr # P21RX-UP060D-14

  • Zoro # G2240716

product price:  $58.45
/ea

Key Features

Overall Height
7-1/2in
Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Application
Dollies, Food Service, Hospital Beds, Hospitality, Hotel Luggage Carts, Institutional, Laundry Trucks, Pharmaceuticals, Stock Carts
Features
Antimicrobial Tread
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21RX-UP060D-14
Zoro #
G2240716
UPC #
-
Country of Origin
China

Dimensions

Overall Height
7-1/2in
Wheel Dia.
6 in
Wheel Width
2 in
Mounting Bolt Dia.
3/8 in
Mounting Height
7 1/2 in
Mounting Plate Size
4in x 4-1/2in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
4 1/2 in
Bolt Hole Spacing - Length
2.625 in
For Axle Dia.
1/2 in
Mounting Plate Thickness
1/4in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in

Details

Caster Plate Hole Pattern
B
Caster Temp. Range Available
Yes
Application
Dollies, Food Service, Hospital Beds, Hospitality, Hotel Luggage Carts, Institutional, Laundry Trucks, Pharmaceuticals, Stock Carts
Features
Antimicrobial Tread
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Stainless Steel
Caster Brake Included
No
Non-Marking
Yes
Item
Rigid Caster
Wheel Color
Gray
Core Color
Gray
Number of Wheels
1
Load Rating
900 lb
Extended Lead
No
Thread Guards
No
Frame Finish
Polished
Inside Bolt Hole Spacing
3 in x 3 in
Caster Sub-Type
Rigid
Swivel Lock Type
No Lock Included
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
Tread Shape
Standard
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Hard
Wheel Core Material
Polypropylene
Wheel Bearing Type
Delrin
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Replacement Wheel
Mfr. No. P-UP-060x020/050DX
Caster Mounting Type
Plate
Standards
RoHS, ICWM, NSF
Tread
Standard
Load Capacity
880 lb
Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances
System of Measurement
Inch
Series
P21X Series
ESD Conductive
No
Wheel Hardness Rating
55 Shore D
Load Capacity - Maximum
880 lb
Caster Features
Corrosion-Resistant
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Delrin
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 900 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
