  11. Rigd Plat Castr, Cast Iron, 6 in., 1200 lb.
Shop All Plate Casters
Zoro Select

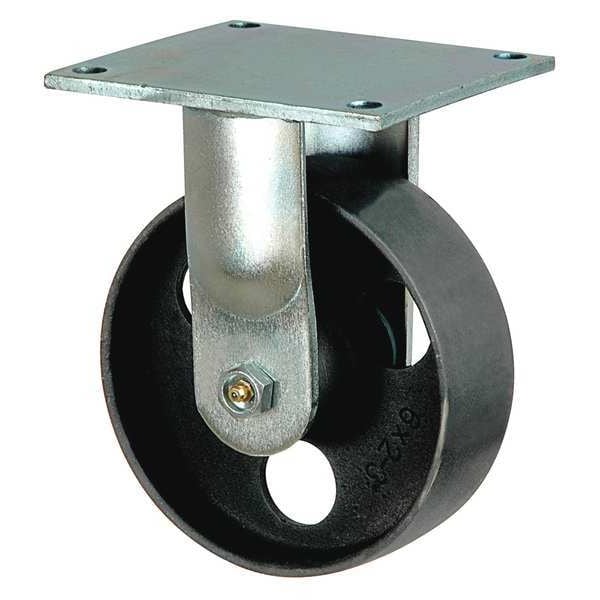

Rigd Plat Castr, Cast Iron, 6 in., 1200 lb.

original price: $22.86
12% off
new price: $19.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Sub-Type Rigid
  • Caster Load Rating Range Medium-Duty
  • Caster Product Group Rigid Caster
  • Caster Wheel Shape Standard
See all product information

Product Information

Dimensions

Wheel Dia. 6 in
Wheel Width 2 in
Overall Height 7-1/2"
Mounting Height 7 1/2 in
Mounting Plate Size 5 in x 5 1/2 in
Mounting Bolt Dia. 3/8 in
Caster Plate Size 5" x 5-1/2"
Plate Size 5" x 5-1/2"

Details

Item Standard Plate Caster
Caster Brake Included No
Caster Sub-Type Rigid
Caster Load Rating Range Medium-Duty
Caster Product Group Rigid Caster
Caster Wheel Shape Standard
Load Rating 1200 lb
Caster Wheel/Tread Material Cast Iron
Wheel/Tread Material Iron
Wheel/Tread Hardness Rating Extra Hard
Wheel Bearing Type Roller
Mounting Plate Bolt Hole Pattern D
Inside Bolt Hole Spacing 4-1/8 in x 4-1/2 in
Outside Bolt Hole Spacing 4-1/8 in x 4-1/2 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Cast Iron
Core Color Black
Plate Caster Bolt Hole Pattern D
Thread Guards No
Caster Core Material Cast Iron
Caster Plate Thickness 15/64"
Frame Material Steel
Caster Swivel Lock Type No Lock Included
Wheel Color Black
Caster Plate Hole Pattern D
Caster Wheel Bearings Roller
Caster Temp. Range Available No
Plate Thickness 15/64"
Swivel Construction Kingpinless
Tread Shape Standard
Load Rating Range 1000 to 2999 lb
Includes Thread Guards No
Wheel/Tread Color Black

Description

Rigid, Standard Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
