  11. Rigd Plt Cstr, Glass Filled Nyl, 3in, 200lb

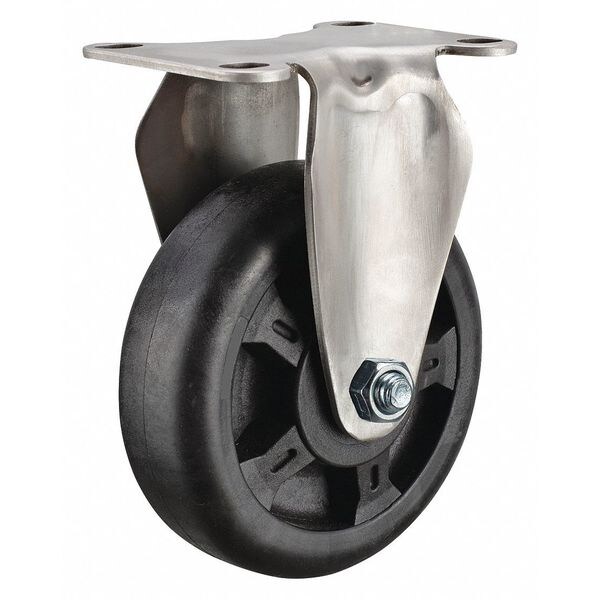

Zoro Select Rigd Plt Cstr, Glass Filled Nyl, 3in, 200lb P12RX-HNG030G-12 - main

Rigd Plt Cstr, Glass Filled Nyl, 3in, 200lb

  • Mfr # P12RX-HNG030G-12

  • Zoro # G4553884

product price: $30.19
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Glass Filled Nylon
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P12RX-HNG030G-12
Zoro #
G4553884
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Height
4 1/2 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
4-1/4in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
For Axle Dia.
3/8 in
Mounting Plate Length
2 1/2 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Glass Filled Nylon
Caster Brake Type
No Brake
Load Rating
200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Crown
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Caster Brake Included
No
Caster Temp. Range Available
Yes
Includes
Complete Caster
Thread Guards
No
Application
High Temperature, Food Industry / Bakeries
Frame Finish
Polished
Extended Lead
No
Standards
RoHS, ICWM, NSF
Wheel Color
Black
Wheel Core Material
Glass Filled Nylon
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Duty
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Tread
Standard
Replacement Wheel
Mfr. No. P-HNG-030x013/038G
Load Capacity
155 lb
Tread Color
Black
ESD Conductive
No
Series
P12X Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
325 lb
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Operating Temperature Range
Up to 550 Degrees F
Operating Temperature - Maximum
550 Degrees F

Description

Rigid, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
