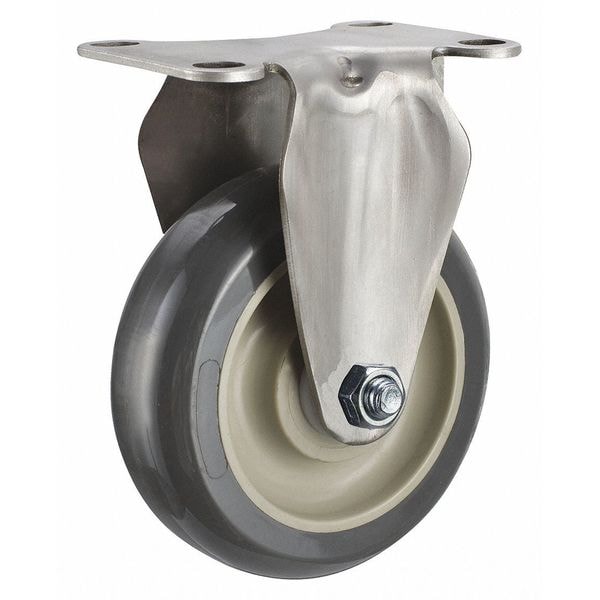

Zoro Select Rgd Plate Cstr, Polyurethane, 4 in, 350 lb. P12RX-UP040D-12-AM - main

Rgd Plate Cstr, Polyurethane, 4 in, 350 lb.

  • Mfr # P12RX-UP040D-12-AM

  • Zoro # G4579346

product price:  $24.99
/ea

Key Features

Wheel Width
1 1/4 in
Wheel Color
Gray
Core Color
Gray
Features
Antimicrobial Tread
Mounting Bolt Dia.
5/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12RX-UP040D-12-AM
Zoro #
G4579346
UPC #
-
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Overall Height
5-1/8in
Wheel Dia.
4 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
5 1/8 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
1/8in
For Axle Dia.
3/8 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Length
3.063 in
Overall Wheel Width
1 1/4 in
Mounting Plate Length
2 1/2 in

Details

Wheel Color
Gray
Core Color
Gray
Features
Antimicrobial Tread
Thread Guards
No
Item
Rigid Caster
Load Rating
275 lb
Number of Wheels
1
Non-Marking
Yes
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Includes
Complete Caster
Caster Sub-Type
Rigid
Frame Finish
Polished
Application
Food Service, Hospitals, Laboratories, Pharmaceuticals
Caster Temp. Range Available
Yes
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Standards
ANSI ICWM
Caster Frame Material
Stainless Steel
Caster Plate Hole Pattern
C
Caster Brake Included
No
Extended Lead
No
Load Rating Range
Light-Medium Duty
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel Bearing Type
Delrin
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel Core Material
Polypropylene
Tread Shape
Standard
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Gray
Replacement Wheel
Mfr. No. P-UP-040x013/038D-AM
Caster Mounting Type
Plate
Load Capacity
275 lb
Tread
Standard
Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances
Series
P12X Series
System of Measurement
Inch
ESD Conductive
No
Load Capacity - Maximum
325 lb
Wheel Hardness Rating
55 Shore D
Wheel Bearing Material
Delrin
Mounting Hole Type
Slot
Caster Features
Antimicrobial, Corrosion-Resistant
Mounting Plate Shape
Rectangle
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Operating Temperature Range
-40 Degrees to 180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
