  11. Rigid NSF-Listed Plate Caster, Phenolic, 6 in, 450 lb.

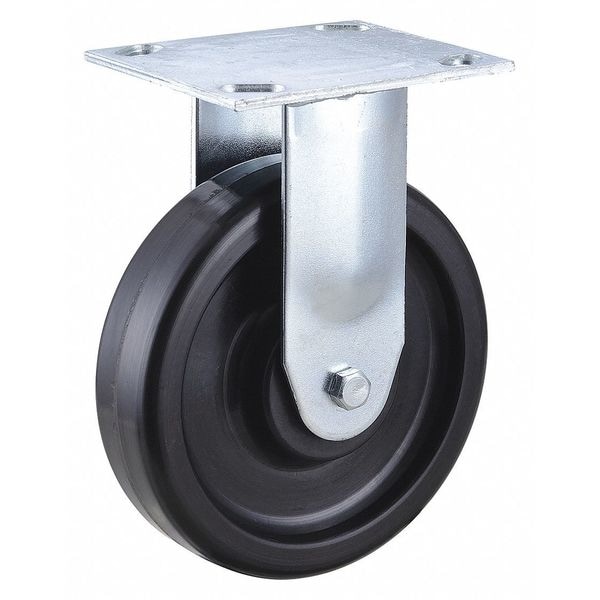

Zoro Select Rigid NSF-Listed Plate Caster, Phenolic, 6 in, 450 lb. 02TM06101R001GN - main

Rigid NSF-Listed Plate Caster, Phenolic, 6 in, 450 lb.

  • Mfr # 02TM06101R001GN

  • Zoro # G4801596

product price: $16.19
/ea

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Wheel Dia.
6 in
Wheel Width
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
02TM06101R001GN
Zoro #
G4801596
UPC #
190735900567
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
1 1/2 in
Mounting Height
7 5/16 in
Mounting Plate Size
3 3/4 in x 4 1/2 in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
3/8 in
Overall Height
7-3/8in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Phenolic
Caster Brake Type
No Brake
Load Rating
450 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Thread Guards
No
Standards
ANSI ICWM, NSF
Caster Temp. Range Available
Yes
Extended Lead
No
Replacement Wheel
TM0610106G
Frame Finish
Zinc Plated
Wheel Color
Black
Caster Brake Included
No
Application
Food Service Racks and Cases, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Swivel Construction
Kingpinless
Wheel/Tread Hardness Rating
Hard
Load Rating Range
300 to 999 lb
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Phenolic
Compatible With
TM0610106G
Load Capacity - Maximum
450 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 250 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Rigid, Plate Caster, Load Rating 450 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 1 1/2 in, Wheel/Tread Material Phenolic, Wheel Core Material Phenolic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
