  11. Rigid NSF-Listed Plate Caster, TPR, 3 in., 200 lb.

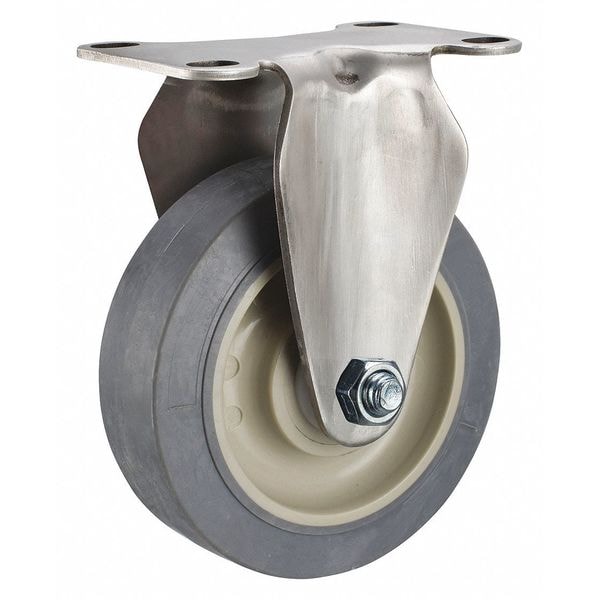

Zoro Select Rigid NSF-Listed Plate Caster, TPR, 3 in., 200 lb. P12RX-PRP030D-12 - main

Rigid NSF-Listed Plate Caster, TPR, 3 in., 200 lb.

  • Mfr # P12RX-PRP030D-12

  • Zoro # G4633946

product price: $23.75
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12RX-PRP030D-12
Zoro #
G4633946
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Height
4 3/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
4-1/4in
Outside Slot Spacing - Length
3.063 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Length
2 1/2 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Width
1.75 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Width
1.75 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Delrin
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Standards
RoHS, ICWM, NSF
Wheel Color
Gray
Includes
Complete Caster
Extended Lead
No
Caster Brake Included
No
Thread Guards
No
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. P-PRP-030x013/038D
Caster Temp. Range Available
Yes
Frame Finish
Polished
Load Rating Range
Light-Duty
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polypropylene
Load Capacity
200 lb
Tread Color
Gray
Tread
Standard
Series
P12X Series
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Compatible With
IS030520670AG
Load Capacity - Maximum
200 lb
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Caster Features
Corrosion-Resistant, Debris-Resistant
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Delrin
Mounting Hole Type
Slot
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature Range
-45 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
