  6. Rigid Plate Caster, 4 in. Dia., 300 lb.
Zoro Select Rigid Plate Caster, 4 in. Dia., 300 lb. P12R-PB040B-P3 - main

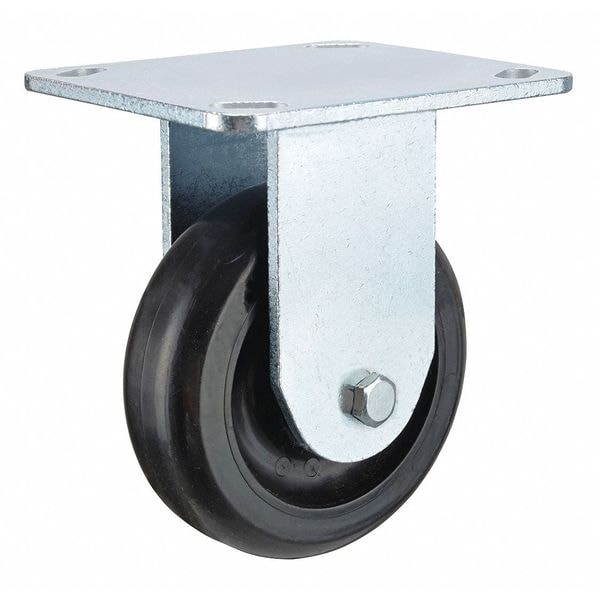

Rigid Plate Caster, 4 in. Dia., 300 lb.

  • Mfr # P12R-PB040B-P3

  • Zoro # G4806331

product price:  $12.79
/ea

Key Features

Caster Brake Included
No
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P12R-PB040B-P3
Zoro #
G4806331
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Overall Height
5-1/8in
Mounting Height
5 1/8 in
Mounting Plate Size
3-3/4in x 4-3/8in
Inside Slot Spacing - Length
3 in
Inside Slot Spacing - Width
2.625 in
For Axle Dia.
3/8 in
Overall Wheel Width
1 1/4 in
Mounting Plate Thickness
1/8in
Mounting Plate Length
4 3/8 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Mounting Plate Width
3 3/4 in
Bolt Hole Spacing - Length
2.625 in

Details

Caster Brake Included
No
Frame Finish
Zinc Plated
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Item
Rigid Caster
Thread Guards
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Frame Material
Steel
Caster Plate Hole Pattern
B
Wheel Color
Black
Standards
ANSI ICWM
Extended Lead
No
Caster Sub-Type
Rigid
Load Rating
275 lb
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Core Color
Black
Replacement Wheel
IB04100106G
Non-Marking
Yes
Caster Temp. Range Available
Yes
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
Tread Shape
Standard
Wheel Bearing Type
Ball
Wheel Core Material
Polypropylene
Caster Brake Type
No Brake
Includes Thread Guards
No
Wheel/Tread Material
Polypropylene
Wheel/Tread Color
Black
Tread
Standard
Caster Mounting Type
Plate
Tread Color
Black
Load Capacity
275 lb
ESD Conductive
No
Series
P12 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
System of Measurement
Inch
Wheel Hardness Rating
65 Shore D
Load Capacity - Maximum
275 lb
Compatible With
IB04100106G
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Maintenance Free
Operating Temperature - Minimum
-20 Degrees F
Operating Temperature Range
-20 Degrees to 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 275 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
