  11. Rigid Plate Caster, Plate Type B, Gray
Zoro Select Rigid Plate Caster, Plate Type B, Gray 33J081 - main

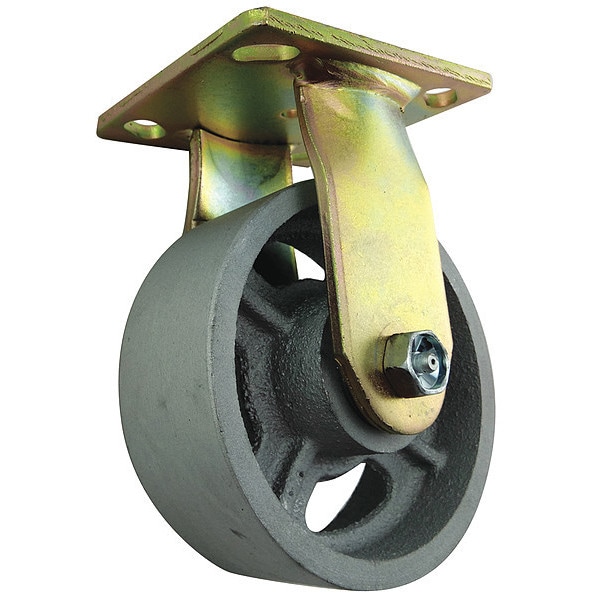

Rigid Plate Caster, Plate Type B, Gray

  • Mfr # 33J081

  • Zoro # G4585673

product price: $25.79
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
33J081
Zoro #
G4585673
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Wheel Width
2 in
Mounting Height
6 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Iron
Caster Brake Type
No Brake
Load Rating
1000 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Gray
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Extended Lead
No
Standards
ANSI ICWM
Caster Brake Included
No
Caster Temp. Range Available
Yes
Replacement Wheel
Mfr. No. CA0520112G
Wheel Color
Gray
Frame Finish
Zinc Chromate
Thread Guards
No
Wheel/Tread Hardness Rating
Extra Hard
Wheel Core Material
Iron
Swivel Construction
Kingpinless
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Load Capacity - Maximum
1,000 lb
Operating Temperature Range
Up to 800 Degrees F
Operating Temperature - Maximum
800 Degrees F

Description

Rigid, Plate Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
