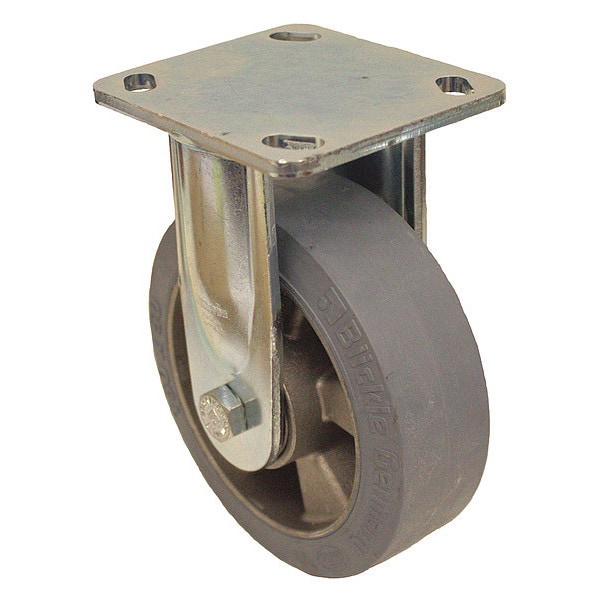

Zoro Select Plate Caster, 550 lb. Ld Rating, Ball BHS-ALEV 125K-14-SG - main

Plate Caster, 550 lb. Ld Rating, Ball

  • Mfr # BHS-ALEV 125K-14-SG

  • Zoro # G7279629

product price:  $59.19
/ea

Key Features

Caster Sub-Type
Rigid
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Core Color
Silver
Non-Marking
Yes
Caster Brake Included
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BHS-ALEV 125K-14-SG
Zoro #
G7279629
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Swivel Radius
None- Rigid Caster
Wheel Width
1 5/8 in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in
Mounting Height
6 1/2 in
Mounting Plate Size
4 in x 4-1/2 in
For Axle Dia.
10 mm
Mounting Plate Length
4 in
Outside Slot Spacing - Width
3 in
Mounting Plate Thickness
0.217 in
Overall Wheel Width
1 5/8 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in

Details

Caster Sub-Type
Rigid
Application
Dollies, Floor Trucks, Material Handling Containers, Platform Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Core Color
Silver
Non-Marking
Yes
Caster Brake Included
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Item
Rigid Caster
Standards
DIN EN 12530, ANSI ICWM
Extended Lead
No
Caster Frame Material
Steel
Thread Guards
No
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. ALEV 125/15K-SG
Features
Floor Protective, Noise Reduction
Load Rating
550 lb
Wheel Color
Gray
Caster Temp. Range Available
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Number of Wheels
1
Caster Plate Hole Pattern
B
Caster Brake Type
No Brake
Tread Shape
Standard
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Bearing Type
Precision Ball
Load Rating Range
Heavy Duty
Includes Thread Guards
No
Wheel Core Material
Aluminum
Wheel/Tread Material
EasyRoll Elastic Solid Rubber
Wheel/Tread Color
Gray
System of Measurement
Inch
Tread
Standard
ESD Conductive
No
Caster Mounting Type
Plate
Series
BHS 14/16 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Tread Color
Gray
Load Capacity
550 lb
Load Capacity - Maximum
550 lb
Wheel Hardness Rating
65 Shore A
Compatible With
ALEV 125/15K-SG
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
Wheel Bearing Material
Steel
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-15 Degrees To 175 Degrees F
Operating Temperature - Minimum
-15 Degrees F

Description

Rigid, Plate Caster, Load Rating 550 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 5/8 in, Wheel/Tread Material Rubber, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
