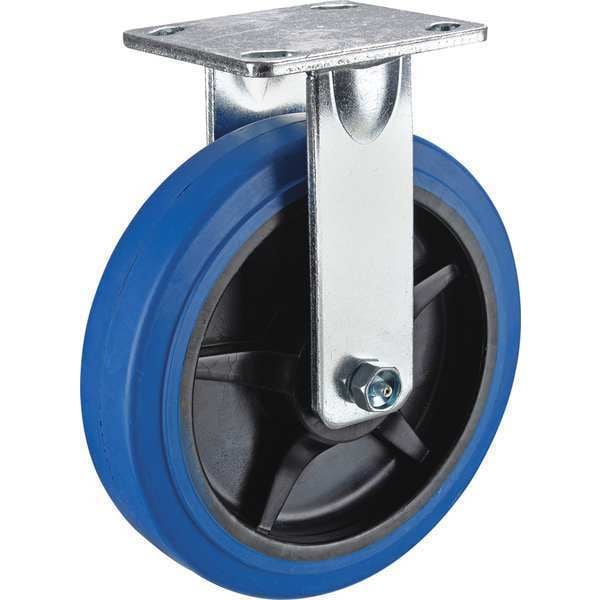

Zoro Select Rigid Plate Caster, Rubber, 8 in., 700 lb. P21R-EP080K-14-001 - main

Rigid Plate Caster, Rubber, 8 in., 700 lb.

  • Mfr # P21R-EP080K-14-001

  • Zoro # G7259917

product price:  $41.39
/ea

Key Features

Includes
Complete Caster
Number of Wheels
1
Application
Dollies, Floor Trucks, Shop Carts, Waste Disposal Trucks
Wheel Dia.
8 in
Wheel Width
2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P21R-EP080K-14-001
Zoro #
G7259917
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
8 in
Wheel Width
2 in
Overall Height
9-1/2in
Mounting Bolt Dia.
3/8 in
Mounting Height
9 1/2 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Plate Length
4 in
Inside Slot Spacing - Width
2.625 in
Inside Slot Spacing - Length
3 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Outside Slot Spacing - Length
3.625 in

Details

Includes
Complete Caster
Number of Wheels
1
Application
Dollies, Floor Trucks, Shop Carts, Waste Disposal Trucks
Core Color
Gray
Extended Lead
No
Frame Finish
Zinc Plated
Features
Maintenance Free
Replacement Wheel
Mfr. No. SWB-0820-08
Standards
ANSI ICWM
Caster Sub-Type
Rigid
Caster Brake Included
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Item
Rigid Caster
Caster Plate Hole Pattern
B
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Load Rating
600 lb
Wheel Color
Blue
Inside Bolt Hole Spacing
3 in x 3 in
Non-Marking
Yes
Thread Guards
No
Swivel Lock Type
No Lock Included
Wheel Core Material
Nylon
Load Rating Range
Light-Medium Duty
Number of Mounting Holes
4
Tread Shape
Standard
Wheel/Tread Material
Elastomer
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Includes Thread Guards
Yes
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Color
Blue
Tread Color
Blue
Load Capacity
600 lb
Tread
Standard
Caster Mounting Type
Plate
Resistant To
High Chemical Resistance To Many Aggressive Substances
System of Measurement
Inch
ESD Conductive
No
Series
P21 Series
Compatible With
SWB-0820-08
Load Capacity - Maximum
600 lb
Wheel Hardness Rating
90 Shore A
Wheel Core Type
Solid
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Maximum
200 Degrees F
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
