  6. Rigid Plate Caster, TPR, 3 in., 200 lb.

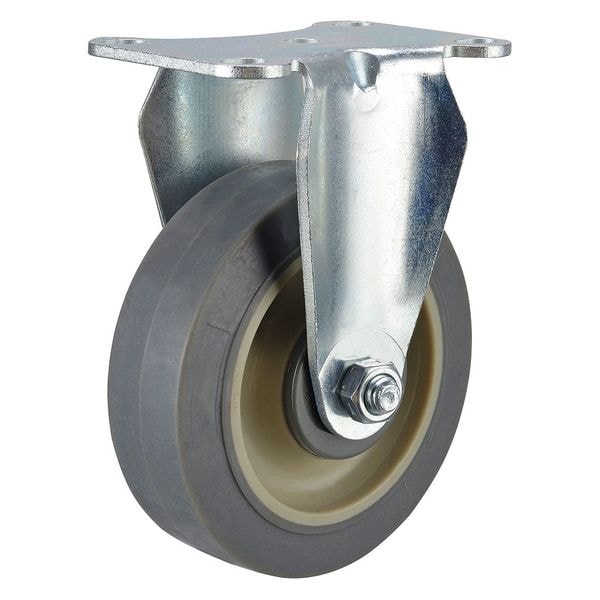

Zoro Select Rigid Plate Caster, TPR, 3 in., 200 lb. P12R-PRP030B-12 - main

Rigid Plate Caster, TPR, 3 in., 200 lb.

  • Mfr # P12R-PRP030B-12

  • Zoro # G2728363

product price:  $10.29
/ea

Key Features

Replacement Wheel
Mfr. No. XS0303106G
Number of Wheels
1
Non-Marking
Yes
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Core Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12R-PRP030B-12
Zoro #
G2728363
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Overall Height
4-1/2in
Wheel Width
1 1/4 in
Wheel Dia.
3 in
Mounting Height
4 3/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Overall Wheel Width
1 1/4 in
For Axle Dia.
3/8 in
Inside Slot Spacing - Width
1.75 in
Mounting Plate Thickness
1/8in
Inside Slot Spacing - Length
2.813 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Length
2 1/2 in

Details

Replacement Wheel
Mfr. No. XS0303106G
Number of Wheels
1
Non-Marking
Yes
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Core Color
Gray
Extended Lead
No
Caster Plate Hole Pattern
C
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Thread Guards
Yes
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Load Rating
200 lb
Standards
ANSI ICWM
Item
Rigid Caster
Wheel Color
Gray
Caster Brake Included
No
Caster Sub-Type
Rigid
Frame Finish
Zinc Plated
Wheel Core Material
Polypropylene
Wheel Bearing Type
Ball
Wheel/Tread Material
Thermoplastic Rubber
Number of Mounting Holes
4
Load Rating Range
Light-Duty
Caster Brake Type
No Brake
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Tread Shape
Standard
Wheel/Tread Color
Gray
Load Capacity
200 lb
Caster Mounting Type
Plate
Tread Color
Gray
Tread
Standard
Series
P12 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
System of Measurement
Inch
Wheel Hardness Rating
90 Shore A
Compatible With
XS0303106G
Load Capacity - Maximum
200 lb
Wheel Bearing Material
Steel
Caster Features
Debris-Resistant
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Hole Type
Slot
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-45 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
