  6. Rigid Plate Caster, TPR, 5 in., 250 lb.

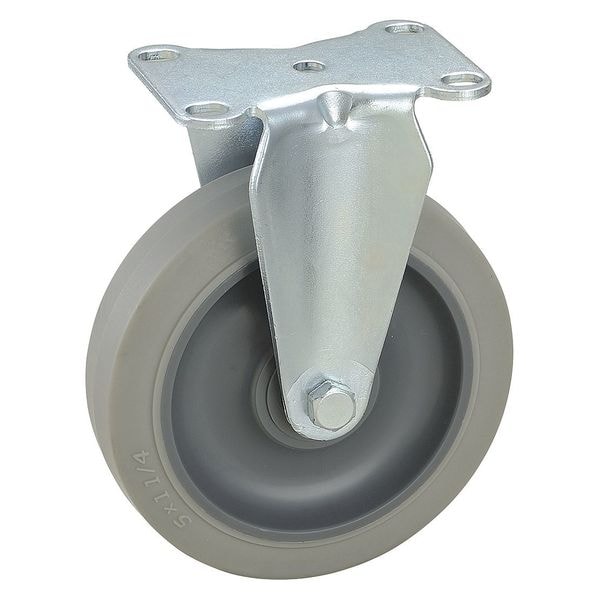

Zoro Select Rigid Plate Caster, TPR, 5 in., 250 lb. 4DE69 - main

Rigid Plate Caster, TPR, 5 in., 250 lb.

  • Mfr # 4DE69

  • Zoro # G2635087

product price:  $12.99
/ea

Key Features

Caster Sub-Type
Rigid
Wheel Width
1 1/4 in
Mounting Height
6 3/16 in
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4DE69
Zoro #
G2635087
UPC #
190735899717
Country of Origin
China

Dimensions

Wheel Width
1 1/4 in
Mounting Height
6 3/16 in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
5 in
Overall Height
6-3/16in
Mounting Plate Size
2 1/2 in x 3 5/8 in
Mounting Plate Thickness
1/8in

Details

Item
Plate Caster
Caster Sub-Type
Rigid
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Tread Shape
Standard
Core Color
Gray
Non-Marking
Yes
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Plate Hole Pattern
C
Load Rating
250 lb
Caster Frame Material
Steel
Extended Lead
No
Replacement Wheel
Mfr. No. XS0503106G
Number of Wheels
1
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Temp. Range Available
Yes
Wheel Color
Gray
Thread Guards
Yes
Caster Brake Included
No
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Frame Finish
Zinc Plated
Includes
Thread guards
Load Rating Range
0 to 299 lb
Includes Thread Guards
Yes
Wheel Core Material
Polyolefin
Wheel/Tread Hardness Rating
Soft
Swivel Lock Type
No Lock Included
Caster Brake Type
No Brake
Swivel Construction
Kingpinless
Number of Mounting Holes
4
Wheel/Tread Material
Rubber
Load Capacity - Maximum
250 lb
Compatible With
XS0503106G
Wheel Hardness Rating
75 Shore A
Operating Temperature Range
-45 Degrees to 180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Rigid, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
