  11. Rigid Plate Caster, TPR, 5 in., 280 lb.
Shop All Plate Casters
Zoro Select

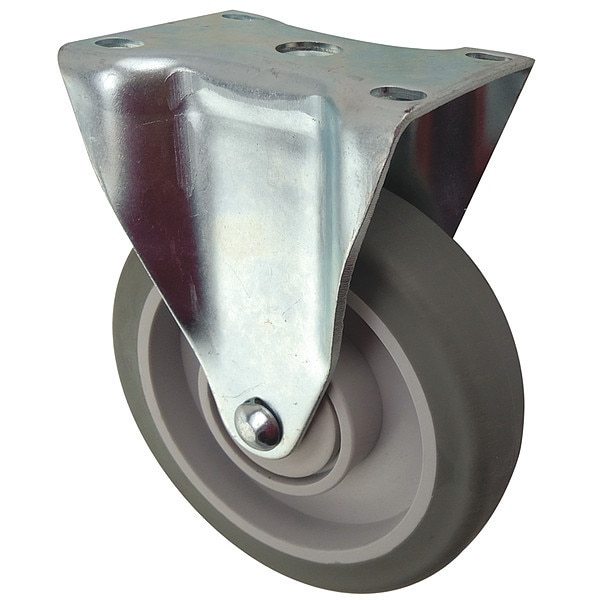

Rigid Plate Caster, TPR, 5 in., 280 lb.

product price: $11.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Caster Brake Included No
  • Caster Sub-Type Rigid
  • Caster Load Rating Range Light-Duty
  • Caster Product Group Rigid Caster
  • Load Rating 280 lb
See all product information

Product Information

Dimensions

Wheel Dia. 5 in
Wheel Width 1 1/4 in
Overall Height 6-1/4"
Mounting Height 6 1/4 in
Mounting Plate Size 2 5/8 in x 3 5/8 in
Mounting Bolt Dia. 5/16 in
Caster Plate Size 2-5/8" x 3-5/8"

Details

Item Debris-Resistant Standard Plate Caster
Caster Brake Included No
Caster Sub-Type Rigid
Caster Load Rating Range Light-Duty
Caster Product Group Rigid Caster
Load Rating 280 lb
Caster Wheel Shape Standard
Caster Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Material Thermoplastic Rubber
Wheel/Tread Hardness Rating Soft
Wheel Bearing Type Precision Ball
Mounting Plate Bolt Hole Pattern C
Inside Bolt Hole Spacing 1-3/4 in x 2-13/16 in
Outside Bolt Hole Spacing 1-3/4 in x 3 in
Number of Mounting Holes 4
Caster Brake Type No Brake Included
Swivel Lock Type No Lock Included
Non-Marking Yes
Number of Wheels 1
Frame Finish Zinc Plated
Caster Frame Material Steel
Wheel Core Material Plastic
Core Color Gray
Application Food Service, Hospital Equipment, Institutional Equipment, Office Equipment, Store Fixtures, Utility Carts
Standards ANSI/ICWM
Includes Thread guards
Thread Guards Yes
Caster Plate Thickness 3/32"
Wheel Color Gray
Caster Min. Temp. -30 Degrees F
Durometer 85 Shore A
Extended Lead No
Frame Material Steel
Caster Wheel Bearings Ball
Caster Swivel Lock Type No Lock Included
Caster Plate Hole Pattern C
Caster Temp. Range -30 Degrees to 180 Degrees F
Caster Max. Temp. 180 Degrees F
Plate Caster Bolt Hole Pattern C
Caster Temp. Range Available Yes
Plate Thickness 3/32"
Caster Core Material Polyolefin
Tread Shape Standard
Includes Thread Guards Yes
Load Rating Range 0 to 299 lb
Swivel Construction Kingpin
Wheel/Tread Hardness 85 Shore A
Wheel/Tread Color Gray

Description

Rigid, Debris-Resistant Standard Plate Caster, Load Rating 280 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Thermoplastic Rubber, Wheel Core Material Plastic, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake Included, Tread Shape Standard
