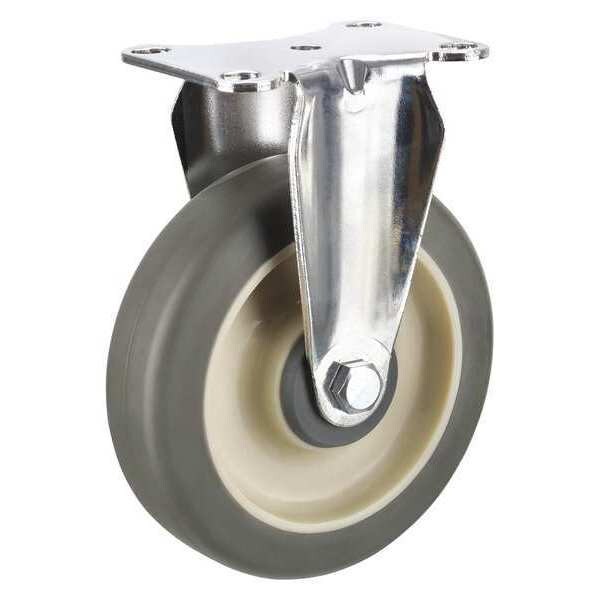

Rigid Plate Caster, TPR, 5 in., 300 lb.

  • Mfr # P12R-RP050B-12-001

  • Zoro # G6873806

product price:
$
40.29
/ea

Key Features

Caster Brake Included
No
Number of Wheels
1
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Wheel Color
Gray
Core Color
Gray
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
P12R-RP050B-12-001
Zoro #
G6873806
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
5 in
Mounting Bolt Dia.
5/16 in
Wheel Width
1 1/4 in
Overall Height
6-1/4"
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Height
6 3/16 in
Inside Slot Spacing - Length
2.813 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
3/8 in
Overall Wheel Width
1 1/4 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Thickness
5/32 in
Mounting Plate Length
2 1/2 in
Outside Slot Spacing - Width
1.75 in

Details

Item
Plate Caster
Caster Brake Included
No
Number of Wheels
1
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Wheel Color
Gray
Core Color
Gray
Load Rating
300 lb
Caster Plate Hole Pattern
C
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Sub-Type
Rigid
Caster Temp. Range Available
Yes
Thread Guards
Yes
Frame Finish
Zinc Plated
Caster Frame Material
Steel
Non-Marking
Yes
Extended Lead
No
Includes
Thread Guards
Standards
ANSI ICWM
Application
Food Service Racks and Cases, Hotel Equipment, Institutional Equipment, Laundry Trucks, Stock Carts
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Double Ball
Number of Mounting Holes
4
Load Rating Range
Light-Medium Duty
Caster Brake Type
No Brake
Tread Shape
Standard
Wheel Bearing Type
Ball
Wheel Core Material
Polyolefin
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Load Capacity
220 lb
Caster Mounting Type
Plate
Tread
Standard
Tread Color
Gray
Replacement Wheel
Mfr. No. P-PRP-050x013/038K
System of Measurement
Inch
ESD Conductive
No
Series
P12 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
325 lb
Mounting Hole Type
Slot
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature Range
-30 Degrees to 300 Degrees F
Operating Temperature - Maximum
300 Degrees F
Operating Temperature - Minimum
-30 Degrees F

Description

Rigid, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
