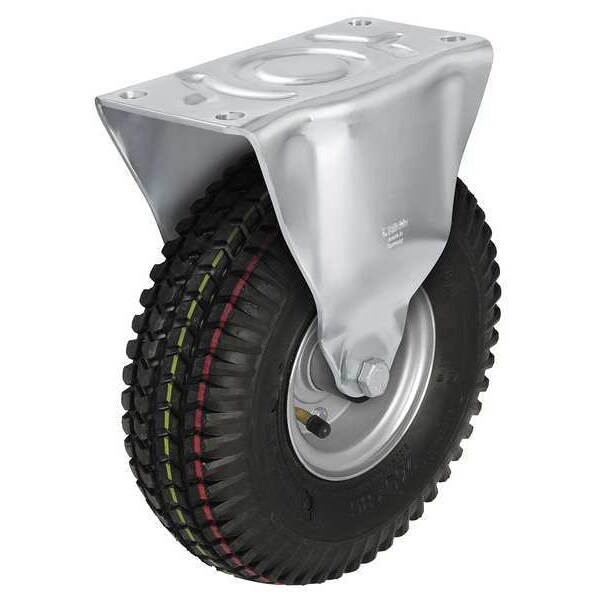

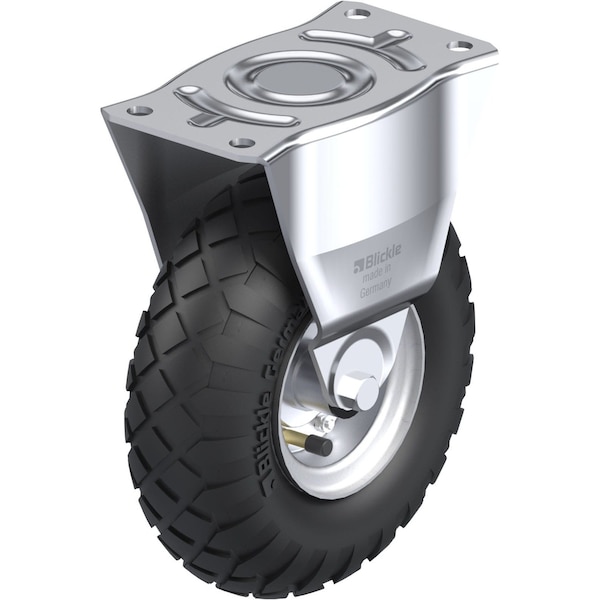

Rigid Pneumatic Caster, 10-1/4 in., 550 lb

  • Mfr # B-P 267R

  • Zoro # G4559484

product price:  $139.99
/ea
Free Shipping & Returns

Key Features

Caster Temp. Range Available
No
Number of Wheels
1
Wheel Width
3 3/8 in
Ply
4
Wheel Dia.
10 1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B-P 267R
Zoro #
G4559484
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Width
3 3/8 in
Wheel Dia.
10 1/4 in
Hub Width
2-15/16 in
Overall Height
12-1/8"
Tire Rim Dia.
5 in
Tire Thickness
2 1/2 in
Mounting Bolt Dia.
9/16 in
Mounting Plate Size
120 mm x 220 mm
Mounting Height
12 1/8 in
Mounting Plate Length
5 1/8 in
Mounting Plate Thickness
5/32 in
Bolt Hole Spacing - Width
2.969 in
Overall Wheel Width
3 3/8 in
Bolt Hole Spacing - Length
7.469 in
For Axle Dia.
12 mm

Details

Caster Temp. Range Available
No
Number of Wheels
1
Ply
4
Load Rating
550 lb
Inside Bolt Hole Spacing
75 mm x 190 mm
Outside Bolt Hole Spacing
75 mm x 190 mm
Caster Plate Hole Pattern
D
Caster Mounting Type
Plate
Hub Type
Centered
Hub Color
Gray
Caster Sub-Type
Rigid
Frame Finish
Zinc Plated
Item
Plate Caster
Hub Material
Steel
Tread
Zig-Zag
Includes Thread Guards
No
Includes
Top Grease Seal
Replacement Wheel
P 267/20-75R
Non-Marking
No
Caster Frame Material
Steel
Number of Mounting Holes
4
Standards
DIN EN 12532, ISO 9001
Core Color
Silver
Wheel/Tread Hardness Rating
Soft
Caster Brake Type
No Brake
Wheel Bearing Type
Roller
Wheel/Tread Material
Rubber
Load Rating Range
Light-Medium Duty
Extended Lead
No
Wheel Type
Pneumatic
Load Capacity
250 kg
Caster Brake Included
No
Tread Color
Black
Application
Retail, Industrial, Commercial
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
ESD Conductive
No
Series
B Series
System of Measurement
Metric
Tread Shape
Standard
Wheel Core Material
Pressed Steel
Wheel Hardness Rating
60 Shore A
Load Capacity - Maximum
550 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Wheel Bearing Material
Steel
Operating Temperature Range
-25 Degrees To 50 Degrees C

Description

Rigid, Plate Caster, Load Rating 550 lb, Wheel Dia. 10 1/4 in, Wheel Width 3 3/8 in, Wheel/Tread Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
