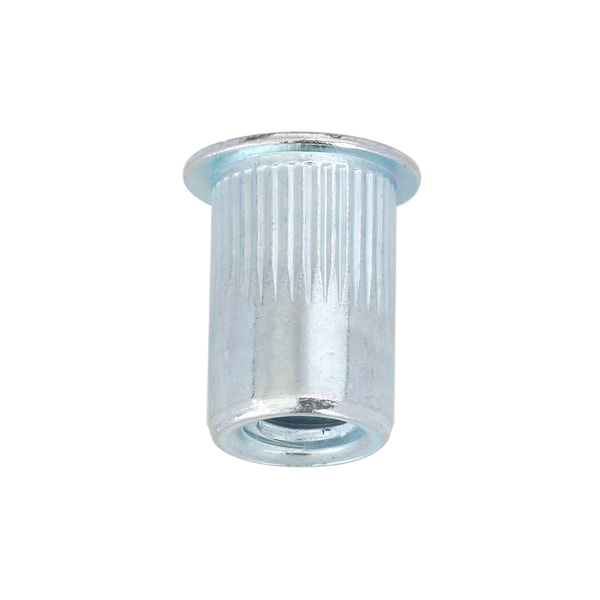

Rivet Nut, 1/4"-20 Thread Size, 0.5 in Flange Dia., 0.59 in L, Steel, 50 PK
Mfr # U69135.025.0165
Zoro # G1724064
CAD Available
product price: $9.49
/pk 50, $0.19/eaKey Features
CAD Drawing
Body Texture
Knurled
Flange Style
Flanged
Thread Size
1/4"-20
Drill Bit Size
25/64"
Material
Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U69135.025.0165
Zoro #
G1724064
UPC #
-
Country of Origin
Multiple
Dimensions
Thread Size
1/4"-20
Drill Bit Size
25/64"
Flange Diameter
0.5 in
Insert Diameter
0.39 in
Overall Length
0.59 in
Hole Size
0.391 in
Head Height
0.06 in
Maximum Material Thickness
0.165 in
Maximum Hole Diameter
0.391 in
Minimum Material Thickness
0.027 in
Flange Thickness
0.06 in
Description
Rivet Nut, System of Measurement Inch, Insert Diameter 25/64 in, Overall Length 19/32 in, Thread Size 1/4 In.-20, Thread Type Coarse, Flange Diameter 0.5 in, Flange Thickness 0.06 in, Material Steel, Finish Zinc-Plated, Body Texture Knurled, Compatible Material Fiberglass, Metal, Plastic, Drill Bit Size 25/64 in, Maximum Hole Diameter 0.391 in, Minimum Material Thickness 0.027 in, Maximum Material Thickness 0.165 in, Insert Nut Type Rivet Nut, End Type Open, Flange Style Flanged
