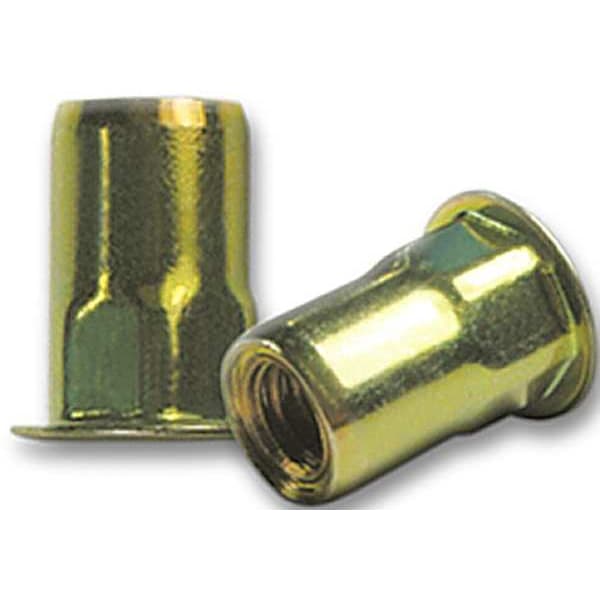

Rivet Nut, #6-32 Thread Size, 0.375 in Flange Dia., 0.385 in L, Steel, 100 PK
Mfr # CAH2-0632-080-100
Zoro # G1965096
product price:Â
$
9.99
/pk of 100, $0.10/ea
Key Features
Body Texture
Smooth
Flange Style
Flanged
Drill Bit Size
1/4"
Material
Steel
Finish
Zinc Yellow
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- CAH2-0632-080-100
- Zoro #
- G1965096
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Thread Size
- #6-32
- Drill Bit Size
- 1/4"
- Flange Diameter
- 0.375 in
- Insert Diameter
- 0.249 in
- Overall Length
- 0.385 in
- Hole Size
- 1/4 in
- Head Height
- 0.027 in
- Maximum Hole Diameter
- 0.25 in
- Flange Thickness
- 0.027 in
- Maximum Material Thickness
- 0.08 in
- Body Length
- 25/64 in
- Minimum Material Thickness
- 0.02 in
- Installed Length
- 19/64 in
- Wire Rope Length
- 13/32 in
- Length
- 13/32 in
Description
Rivet Nut, System of Measurement Inch, Insert Diameter 1/4 in, Overall Length 13/32 in, Installed Length 19/64 in, Thread Size #6-32, Thread Type Coarse, Flange Diameter 0.375 in, Flange Thickness 0.027 in, Material Steel, Material Grade/Class 1008/1010, Finish Zinc Yellow, Body Texture Smooth, Compatible Material Metal, Drill Bit Size 17/64 in, Maximum Hole Diameter 0.25 in, Minimum Material Thickness 0.02 in, Maximum Material Thickness 0.08 in, Insert Nut Type Rivet Nut, Body Type Hex
