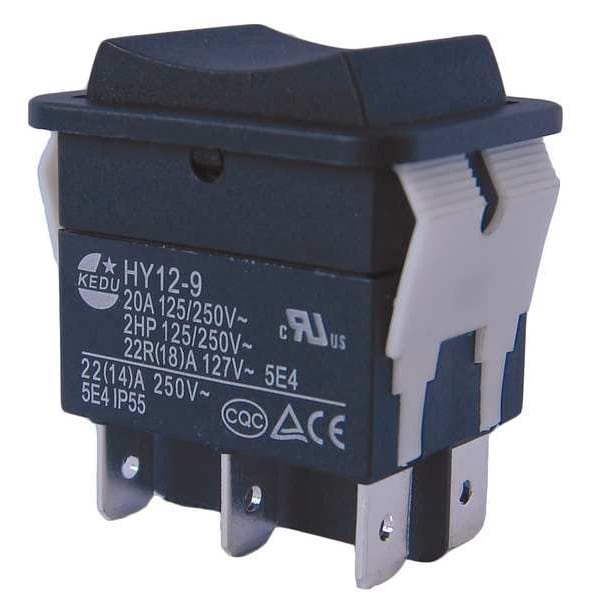

Zoro Select Rocker Switch, DPDT, 6 Connections 29FG31 - main

Rocker Switch, DPDT, 6 Connections

  • Mfr # 29FG31

  • Zoro # G9087547

product price: $8.35
/ea

Key Features

Contact Form
DPDT
Number of Connections
6
Switch Function
On/On
Terminals
0.250 in Quick Connect Tab
Mounting Hole
0.870 in x 1.160 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
29FG31
Zoro #
G9087547
UPC #
190735591499
Country of Origin
China

Dimensions

Mounting Hole Length
1.17 in
Mounting Hole Width
0.87 in
Overall Depth
1.05 in
Overall Height
0.35 in
Overall Width
1.3 in
Manufacturer Warranty Length
2 yr

Details

Item
Rocker Switch
Contact Form
DPDT
Number of Connections
6
Switch Function
On/On
Terminals
0.250 in Quick Connect Tab
Mounting Hole
0.870 in x 1.160 in
AC Contact Rating
22 A @ 127 V, 20 A @ 125 V, 20 A @ 250 V
HP
2 hp
Standards
cRUus
Recommended Use
Generators, Industrial Machines
Operating Temp. Range
32 Degrees to 149 Degrees F
Switch Color
Black
Body Color
Black
Product Type
Rocker Switch
IP Rating
IP40
Switch Function Configuration
On/On
Includes Lamp Module
No Lamp Module Included
Lamp Module Type
No Lamp Module Included
Operator Illumination
Non-Illuminated
Series
HY12
Includes Lens
No Lens Included
Horsepower
2 hp
Terminal Connection Type
Quick-Connect Tab Terminals
Number of Positions
2
Operating Temperature - Minimum
32 Degrees F
Operating Temperature - Maximum
185 Degrees F
Lamp Type
No Lamp Module Included

Description

Rocker Switch, Contact Form DPDT, Number of Connections 6, Switch Function On/On, Terminals 0.250 in Quick Connect Tab, Mounting Hole 0.870 in x 1.160 in, AC Contact Rating 22 A @ 127 V, 20 A @ 125 V, 20 A @ 250 V, DC Contact Rating Not Applicable, HP 2 hp, Body Color Black, Switch Color Black, Operating Temp. Range 32 Degrees to 149 Degrees F, Standards cRUus, IP Rating IP40, Recommended Use Generators, Industrial Machines
