This item is Discontinued.

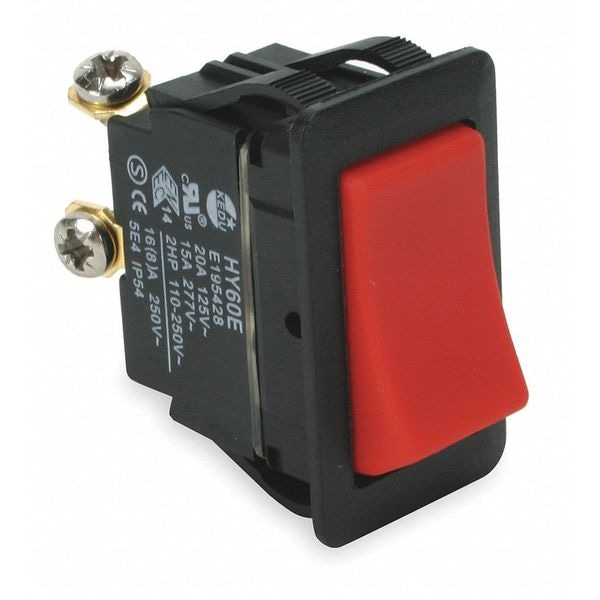

Zoro Select Rocker Switch, SPST, 2 Connections 2LNC4

Rocker Switch, SPST, 2 Connections (Discontinued)

  • Mfr # 2LNC4
  • Zoro # G2442946
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2LNC4
Zoro #
G2442946
UPC #
190735592854
Country of Origin
China

Dimensions

Manufacturer Warranty Length
2 yr
Overall Depth
0.96 in
Overall Height
0.37 in
Mounting Hole Width
0.83 in
Overall Width
1.7 in
Mounting Hole Length
1.48 in

Details

Item
Rocker Switch
Contact Form
SPST
Number of Connections
2
Switch Function
Momentary On/Off
Terminals
Screw
Mounting Hole
0.830 in x 1.450 in
AC Contact Rating
15 A @ 277 V, 20 A @ 125 V
HP
2 hp
Standards
cRUus
Body Color
Black
Operating Temp. Range
32 Degrees to 104 Degrees F
Switch Color
Red
Shop By
Closeouts
Product Type
Rocker Switch
Switch Function Configuration
Momentary On/Off
Lamp Module Type
No Lamp Module Included
Operating Temperature - Maximum
104 Degrees F
Number of Positions
2
Terminal Connection Type
Screw Terminals
Includes Lens
No Lens Included
Operating Temperature - Minimum
32 Degrees F
Operator Illumination
Non-Illuminated
Lamp Type
No Lamp Module Included
Series
HY60
Includes Lamp Module
No Lamp Module Included
Horsepower
2 hp

Description

Rocker Switch, Contact Form SPST, Number of Connections 2, Switch Function Momentary On/Off, Terminals Screw, Mounting Hole 0.830 in x 1.450 in, AC Contact Rating 15 A @ 277 V, 20 A @ 125 V, DC Contact Rating Not Applicable, HP 2 hp, Body Color Black, Switch Color Red, Operating Temp. Range 32 Degrees to 104 Degrees F, Standards cRUus, IP Rating Not Applicable
