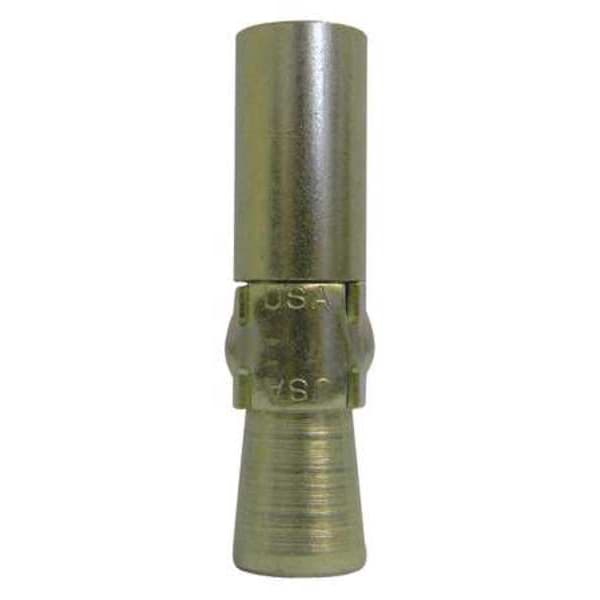

Rod Hanger Wedge Anchor, 1/2" Dia., 2-3/8" L, Steel Plain, 4 PK

  • Mfr # 38DWG
  • Zoro # G4305165
CAD Available
product price:
$
18.69
/pk of 4, $4.67/ea

Key Features

CAD Drawing
Compatible Material
Brick, Concrete
Overall Length
2-3/8"
Sub-Brand
Rod Hanger
Material
Steel
Finish
Plain
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
38DWG
Zoro #
G4305165
UPC #
093855773922
Country of Origin
United States
CAD Available
Yes
Item
Wedge Anchor
Compatible Material
Brick, Concrete
Sub-Brand
Rod Hanger
Material
Steel
Finish
Plain
Ultimate Pullout (Lb.)
3,600 lb
Ultimate Tension Strength (4,000 psi Concrete)
3,600 lb
Allowable Tension (Lbs.)
360
Recess
1"
Installation Turns
2.5 to 3.5
Allowable Shear (Lbs.)
Dependant On Threaded Fastener Used, The Entire Rod Hanger Is Below The Masonry Surface So It Will Not Shear
Embedment In Concrete
1 in Below Surface of Concrete
Drive Tools
Blunt Nose Punch
Ultimate Tension (Lbs.)
3,600 lb
Industry Standards
FF-S-325. Group II, Type 4
Wedge Anchor Type
Wedge Anchor
Thread Type
Coarse
Manufacturer Location
Made in USA
Material Quality Standards
ANSI A58.1, ASTM B-633, ASTM E-488.88
Maximum Ultimate Tension Strength
3,600 lb
System of Measurement
Inch
Shell Material
Steel

Dimensions

Anchor Diameter
1/2"
Overall Length
2-3/8"
Drill Bit Size
1/2 in
Thread Size
3/8"-16
Minimum Installation Depth
3-3/8"
Thread Depth
7/8"
Min. Hole Depth
3"
Thread Length
7/8 in
Bolt Dia.
3/8"
Wire Rope Length
2 3/8 in
Length
2 3/8 in

Description

Wedge Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Thread Size 3/8 In.-16, Overall Length 2 3/8 in, Thread Length 7/8 in, Eyelet Hole Size Not Applicable, Material Steel, Finish Plain, Compatible Material Brick, Concrete, Drill Bit Size 1/2 in, Minimum Installation Depth 3 3/8 in, Ultimate Tension Strength (4,000 psi Concrete) 3,600 lb, Wedge Anchor Type Wedge Anchor, Manufacturer Location Made in USA, Industry Standards FF-S-325. Group II, Type 4
