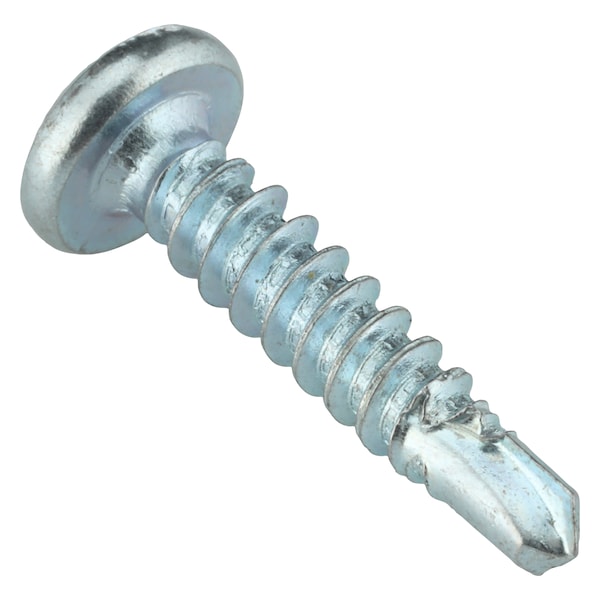

Self-Drilling Screw, #8 x 3/4 in, Zinc Plated Steel Pan Head Phillips Drive, 100 PK

  • Mfr # U31820.016.0075

  • Zoro # G1550421

CAD Available
product price:
$
3.15
/pk of 100, $0.03/ea

Key Features

Pan Head
Phillips Drive
Drilling Tip
CAD Drawing
System of Measurement
Inch
Drive Size
#2
Material
Steel
Finish
Zinc Plated
Thread Style
Fully Threaded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
U31820.016.0075
Zoro #
G1550421
UPC #
-
Country of Origin
Multiple

Dimensions

Screw Size
#8
Fastener Length
3/4 in
Drive Size
#2
Drill Point Size
2
Head Dia.
0.322 in to 0.306 in
Drill Point Length
0.211 in
Head Height
0.115 in
Drill Tip Length
7/32 in
Maximum Head Height
7/64 in
Maximum Drilling Thickness
0.136 in
Maximum Head Width
21/64 in
Head Width
0.322 in
Overall Length
3/4 in
Wire Rope Length
3/4 in
Thread Size
#8-18
Length
3/4 in

Details

CAD Available
Yes
System of Measurement
Inch
Head Type
Pan
Drive
Phillips
Tip Type
Drilling
Material
Steel
Finish
Zinc Plated
Thread Style
Fully Threaded
Item
Self-Drilling Screw
Standards
SAE J78/IFI 113
Head Color
Silver
Application
Steel to Steel
Point Type
BSD
Dimensional Standards
RoHS Compliant
Type
Self-Drilling Screw
Material Quality Standards
SAE J429
Pack Size
Small

Description

The ZORO SELECT - U31820.016.0075 is a self-drilling screw suitable for use in steel-to-steel applications in industrial and commercial settings. These screws are equipped with a drill point at the end, which may enable direct driving into materials, potentially eliminating the need for pre-drilled holes. The screws are made of steel, which is known for its potential strength and durability, and feature a zinc-plated finish that could offer improved corrosion resistance.

  • Application: Suitable for use in potential steel-to-steel fastening tasks across a range of industrial applications.
  • CAD Available: A Computer-Aided Design (CAD) file is available to incorporate accurate screw dimensions into digital project plans.
  • Drive Type: Requires a Phillips tool for installation or removal.
  • Fastener Length: With a length of 3/4 inch, this may influence the depth at which it can penetrate and secure materials together.
  • Head Type: Features a pan head type that might be easier to use with specific tools or more suitable within certain material contexts and application scenarios.
  • Screw Size: #8 diameter with corresponding thread count suggesting its width along with number of threads per inch. This specification could contribute towards securing fastenings within an industrial context
  • Standards Compliance: Adheres to SAE J78/IFI 113 standards indicating compliance with established technical specifications for design, safety, performance
  • Thread Style: Fully threaded along its entire length which might provide increased grip when attempting to secure materials together
