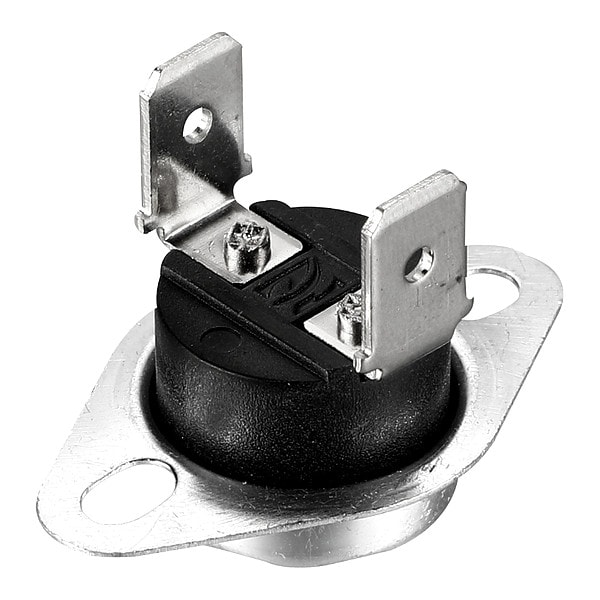

Set Limit, Auto Reset, Opens 200

  • Mfr # 6UEA7

  • Zoro # G3698161

product price: $5.99
/ea

Key Features

Temp. Range (F)
160 to 200
Type
Limit, Automatic Reset
Switch Type
SPST
Depth (In.)
3/4 in
Width (In.)
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6UEA7
Zoro #
G3698161
UPC #
190735544556
Country of Origin
China

Dimensions

Depth (In.)
3/4 in
Width (In.)
3/4 in
Height (In.)
1 1/4 in
Overall Height
1 1/4 in
Mounting Base Length
1 1/4 in
Overall Width
3/4 in
Mounting Hole Diameter
1/8 in
Face Diameter
1 1/4 in
Terminal Size
1/4 in
Overall Depth
3/4 in
Mounting Base Width
3/4 in

Details

Item
Temperature Limit Controller
Temp. Range (F)
160 to 200
Type
Limit, Automatic Reset
Switch Type
SPST
Switch Closes @ (F)
160 Degrees F
Switch Opens @ (F)
200 Degrees F
Voltage Range
120 to 240
Resistive Amps @ 120V
15 A
Resistive Rating 240V
10
Circuit #1 Switch Opens @ (F)
200 Degrees F
Switch Action
Open on Rise
Differential
40
Inductive Amps @ 120V
3 A
Circuit #1 Switch Closes @ (F)
160 Degrees F
Inductive Amps @ 240V
1.5 A
Standards
cULus Recognized
Reset Type
Automatic Reset
Input Voltage
120V AC, 240V AC
Product Type
Temperature Limit Controller
Wire Connections
Spade Terminals
Weight
0.2 oz
Resistive Amps @ 240V AC
16 A
Mounting Hole Center to Center Distance
7/8 in
Contact Form
SPST
Number of Mounting Holes
2
Switch Opening Temperature
200 Degrees F
Switch Closing Temperature
160 Degrees F
Mounting
Surface Mount
Temperature Differential
40 Degrees F
IP Rating
Not Rated
Resistive Amps @ 120V AC
16 A
Resistive Amps @ 277V AC
16 A
Application
Limit Control

Description

Temperature Limit Controller, Application Limit Control, Mounting Surface Mount, Contact Form SPST, Switch Action Open on Rise, Reset Type Automatic Reset, Switch Closing Temperature 160 Degrees F, Switch Opening Temperature 200 Degrees F, Input Voltage 120V AC, 240V AC, Maximum Control Temperature Not Applicable, Minimum Control Temperature Not Applicable, Mounting Base Length 1 1/4 in, Mounting Base Width 3/4 in, Product Type Temperature Limit Controller, Temperature Differential 40 Degrees F
