  11. Silver/Deming Drill, 7/8, Co, 118Deg
Zoro Select Silver/Deming Drill, 7/8, Co, 118Deg 5TVP9 - main

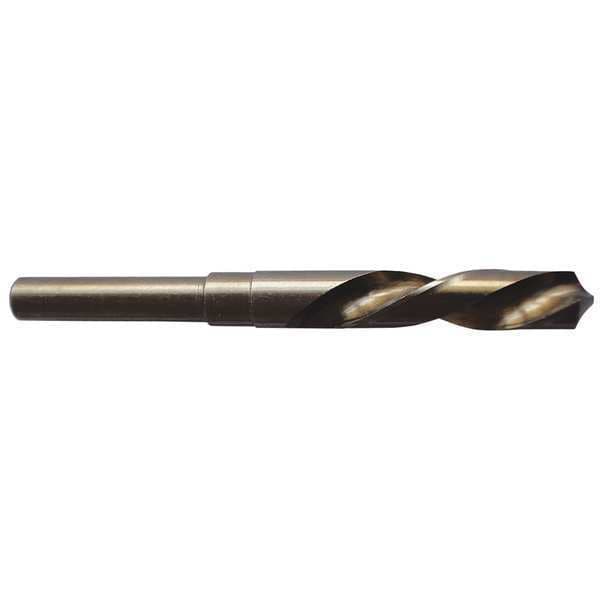

Silver/Deming Drill, 7/8, Co, 118Deg

  • Mfr # 5TVP9

  • Zoro # G1049745

product price: $84.99
/ea
Free Shipping & Returns

Key Features

Material - Machining
Cobalt
Finish - Machining
Straw/Bronze
Overall Length
6 in
Shank Dia.
1/2 in
Shank Type - Machining
Straight
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5TVP9
Zoro #
G1049745
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
6 in
Shank Dia.
1/2 in
Drill Bit Size
7/8 in
Flute Length
3 1/8 in
Drill Bit Dimension Type
Fractional Inch
Depth:Dia. Ratio
4xD
Drill Diameter Tolerance
+0.0000 in/-0.0012 in

Details

Item
Reduced Shank Drill Bit
Material - Machining
Cobalt
Finish - Machining
Straw/Bronze
Shank Type - Machining
Straight
Drill Bit Point Type
Split Point
Number of Flutes
2
Decimal Equivalent
0.8750
Drill Bit Point Angle
118 Degrees
Drill Bit Grouping
Drill Bit
Application
Stainless, Alloy Steel, Cast Iron, Copper, Aluminum
Flute Type
Spiral
Cutting Direction
Right Hand
Standards
Not Rated
Material Grade - Machining
M42
Measurement System
Fractional Inch
Silver & Deming Drill
Yes
Coolant Fed
Non-Coolant Through
Spiral Direction
Right Hand
Number of Drill Bits
1
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
30 Degrees
Secondary Material Application
Aluminum, Brass, Bronze, Copper
Primary Material Application
Cast Iron, Stainless Steel, Steel
Primary Material Application ISO Code
K, M, P
Secondary Material Application ISO Code
N

Description

Reduced Shank Drill Bit, Drill Bit Size 7/8 in, 118 Degrees Drill Bit Point Angle, Material - Machining Cobalt, Finish - Machining Straw/Bronze
