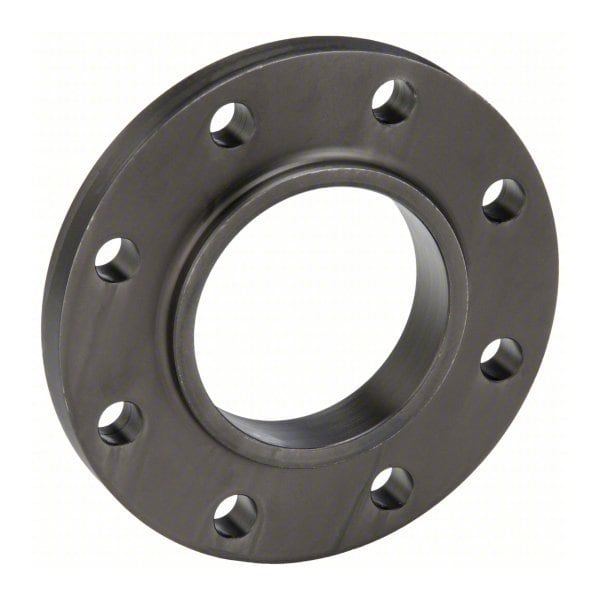

Slip On Flange Slip On Flange, 5" Pipe, Welded, Black Steel, Class 150

  • Mfr # FLCS1RFSO500

  • Zoro # G2373786

product price:  $79.65
/ea

Key Features

Specific Fitting Shape
Slip On Flange
Fitting Connection Type
Welded
Pipe Fitting Material
Black Steel
Pipe Size (Fittings)
5"
Class
Class 150
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FLCS1RFSO500
Zoro #
G2373786
UPC #
-
Country of Origin
Multiple

Dimensions

Pipe Size (Fittings)
5"
Pipe Size - Pipe Fitting
5 in
Flange Thickness
7/8 in
Bolt Hole Diameter
7/8 in
Nominal Pipe Size
5 in
Bolt Circle Diameter
8 1/2 in
Flange Outside Diameter
10 in
Overall Length
6 7/16 in
Wire Rope Length
6 7/16 in

Details

Specific Fitting Shape
Slip On Flange
Fitting Connection Type
Welded
Pipe Fitting Material
Black Steel
Class
Class 150
Item
Slip On Flange
Standards
ASTM A-197, ASTM A47, ASME B16.3 and B16.4, UL Listed, FM Approved
Pipe Fitting Connection Type
Welded
Saturated Steam Pressure
150 PSI
Max. Pressure
150 psi@450 Degrees F
Basic Pipe Fitting Shape
Flange
Basic Pipe Fitting Material
Metal
Pipe Fitting Schedule/Class
Class 150
Specific Pipe Fitting Shape
Slip On Flange
Fitting Schedule/Class
Class 150
Temp. Range
-29 Degrees to 425 Degrees F
Maximum Operating Pressure
150 psi
Application
Air, Fuels, Non-Potable Water, Potable Water, Gases
Connection Surface
Raised
Low Lead Compliance Level
No Lead Content
Finish/Coating
Anodized
Number of Bolt Holes
8
For Pipe Schedule
Schedule 40
Color
Black
Type
Class 150, Slip On
Manufacture Location
Globally Sourced
Minimum Operating Temperature
-20 Degrees F
Material Grade
A105
Gravity Flow
Pressure
Pipe Connection Type
Slip-On
Maximum Operating Temperature
800 Degrees F

Description

Flange, Raised, 5 in Nominal Pipe Size, Flanged x Slip-On, 10 in Flange Outside Diameter, 7/8 in Flange Thickness, 6 7/16 in Wire Rope Length, Steel, Anodized, A105, Class Class 150, For Pipe Schedule Schedule 40, 150 psi Maximum Operating Pressure, -29 Degrees to 425 Degrees F, Number of Bolt Holes 8, 8 1/2 in Bolt Circle Diameter, 7/8 in Bolt Hole Diameter

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
