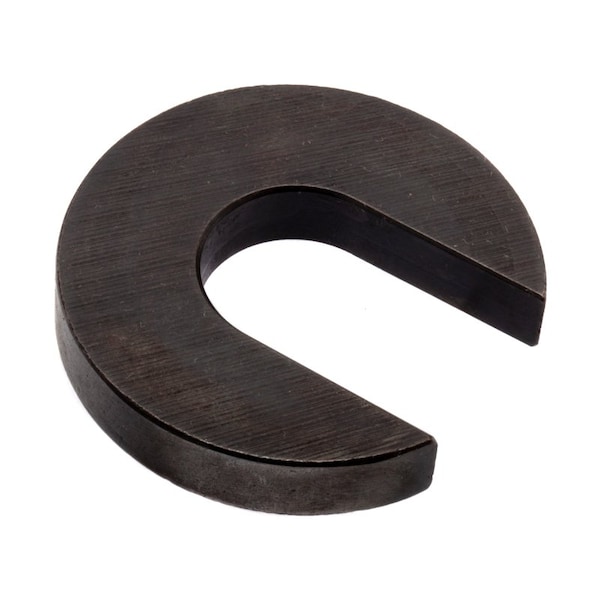

Slotted Washer, For Screw Size 1 in , Steel Black Oxide Finish
Mfr # Z9434
Zoro # G1122712
CAD Available
product price: $21.99
/eaKey Features
CAD Drawing
Flat Washer Type
Slotted Flat Washer
Material
Steel
Finish
Black Oxide
Minimum Thickness
0.438 in
Maximum Thickness
7/16 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Z9434
Zoro #
G1122712
UPC #
-
Country of Origin
United States
Dimensions
For Screw Size
1 in
Outside Diameter
2 1/2 in
Minimum Thickness
0.438 in
Maximum Thickness
7/16 in
Inside Diameter
1-1/32 in
Slot Width
1 1/32 in
Slot Depth
1 9/16 in
Description
Slotted Flat Washer, Flat Washer Type Slotted Flat Washer, Dimensional Standards AMPG 2003 SLT.01, Material Steel, Material Grade/Class Case Hardened, Finish Black Oxide, For Screw Size 1 in, Inside Diameter 0.281 in, Outside Diameter 2 1/2 in, Maximum Thickness 7/16 in, System of Measurement Inch, Minimum Thickness 7/16 in, Color Black, Material Quality Standards ASTM A108, Pack Size Small Pack, Rockwell Hardness C40 Surface, Thickness Tolerance +/-0.015 in
