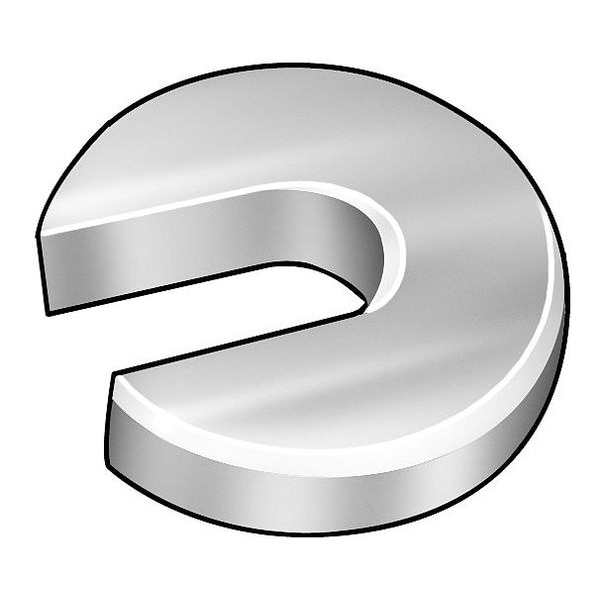

Slotted Washer, For Screw Size 5/8 in , Steel Black Oxide Finish
Mfr # Z9431
Zoro # G0968922
CAD Available
product price: $15.49
/eaKey Features
CAD Drawing
Material
Steel
Finish
Black Oxide
Minimum Thickness
0.375 in
Maximum Thickness
3/8 in
Inside Diameter
21/32 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Z9431
Zoro #
G0968922
UPC #
-
Country of Origin
United States
Dimensions
For Screw Size
5/8 in
Outside Diameter
2 1/8 in
Minimum Thickness
0.375 in
Maximum Thickness
3/8 in
Inside Diameter
21/32 in
Slot Width
21/32 in
Slot Depth
1 7/16 in
Description
Slotted Flat Washer, Flat Washer Type Slotted Flat Washer, Dimensional Standards AMPG 2003 SLT.01, Material Steel, Material Grade/Class Case Hardened, Finish Black Oxide, For Screw Size 5/8 in, Inside Diameter 0.281 in, Outside Diameter 2 1/8 in, Maximum Thickness 3/8 in, System of Measurement Inch, Minimum Thickness 3/8 in, Color Black, Material Quality Standards ASTM A108, Pack Size Small Pack, Rockwell Hardness C40 Surface, Thickness Tolerance +/-0.015 in
