  13. Snap Action Switch, Hinge, Lever Actuator, SPDT, 25 A at 480 V AC Contact Rating

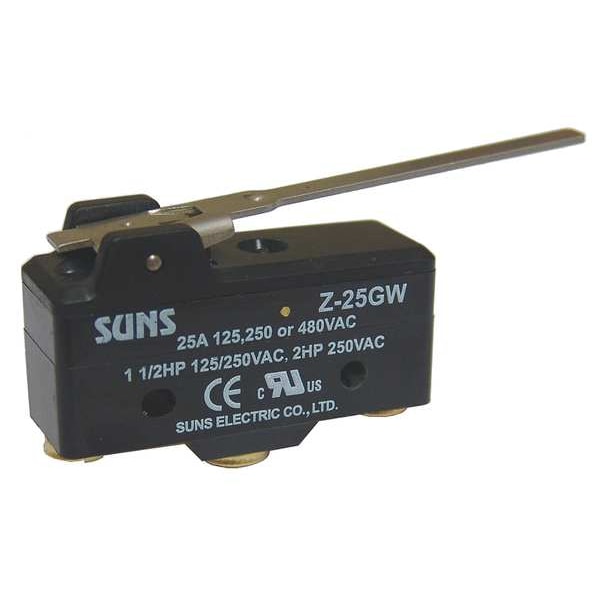

Zoro Select Snap Action Switch, Hinge, Lever Actuator, SPDT, 25 A at 480 V AC Contact Rating 5JEG2 - main

Snap Action Switch, Hinge, Lever Actuator, SPDT, 25 A at 480 V AC Contact Rating

  • Mfr # 5JEG2

  • Zoro # G2022501

product price: $9.19
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
25 A @ 480 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
1.5 in
Height - Snap Action Switch
0.64 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JEG2
Zoro #
G2022501
UPC #
190735527917
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
1.5 in
Height - Snap Action Switch
0.64 in
Width - Snap Action Switch
1.82 in
Depth - Snap Action Switch
0.64 in
Height
0.64"
Depth
0.64"
Length
1.823"
Mounting Dimension
1.00" Centers
Mounting Dimension - Snap Action Switch
1.00 in Centers
Actuator Length
1.50"
Body Depth
0.64 in
Lever Actuator Length
1.5 in
Mounting Hole Diameter
1/8 in
Body Width
1.82 in
Overall Width
1.82 in
Body Height
0.64 in
Overall Depth
0.64 in
Overall Height
0.64 in
Manufacturer Warranty Length
1 yr

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge, Lever
AC Contact Rating - Snap Action Switch
25 A @ 480 V
Contact Form- Switches
SPDT
Release Force
0.49 ozf
Type of Actuator
Hinge Lever
Operating Force
3.53 oz
Standards
cRUus Component Recognized, CE
Contact Form
SPDT
Over Travel
0.187 in
Watertight - Snap Action Switch
No
Housing Material
Phenolic Case and Cover
Voltage Rating
125/250/480VAC
Series
Microswitch
Max. Pretravel
0.25 in
Current Rating
25A
Terminal Type
Screw
Operating Temp. Range
-40 Degrees to 221 Degrees F
Differential Travel
0.093 in
Electrical Connection - Snap Action Switch
Screw
DC Contact Rating
0.25 A @ 250 V
AC Contact Rating
25 A @ 480 V
Pretravel
0.25 in
Body Material
Phenolic
Actuator Style
Hinge Lever
Operating Temperature - Maximum
221 Degrees F
Electrical Connection
Screw
Operating Force - Maximum
0.7 N
Overtravel
0.187 in
Operating Temperature - Minimum
-40 Degrees F
Center Mounting Hole Distance
1 in
Resistance Properties
Non-Magnetic
Differential Travel - Maximum
2.77 mm

Description

Snap Action Switch, Hinge, Lever, AC Contact Rating - Snap Action Switch 25 A @ 480 V, Contact Form- Switches SPDT, Lever Actuator Length - Snap Action Switch 1.5 in, Height - Snap Action Switch 0.64 in, Width - Snap Action Switch 1.82 in, Depth - Snap Action Switch 0.64 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Microswitch
