  13. Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 15 A at 240 V AC Contact Rating

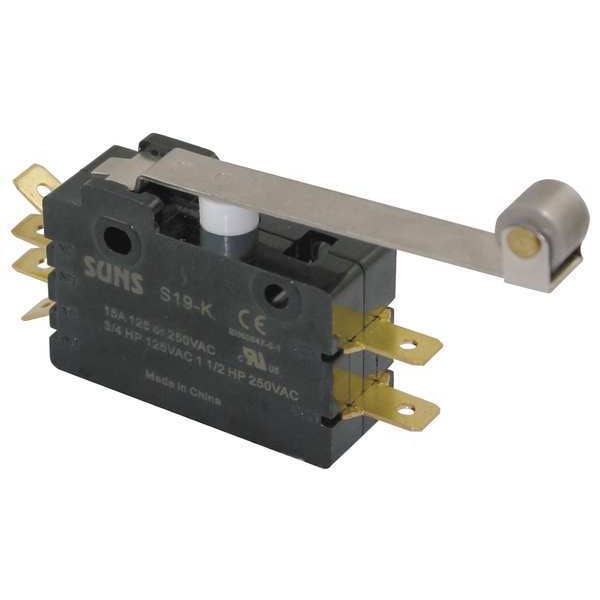

Zoro Select Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 15 A at 240 V AC Contact Rating 5JEH3 - main

Snap Action Switch, Hinge Roller, Lever Actuator, DPDT, 15 A at 240 V AC Contact Rating

  • Mfr # 5JEH3

  • Zoro # G1659305

product price: $12.99
/ea

Key Features

Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
DPDT
Lever Actuator Length - Snap Action Switch
1.39 in
Height - Snap Action Switch
1.12 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JEH3
Zoro #
G1659305
UPC #
190735528020
Country of Origin
China

Dimensions

Lever Actuator Length - Snap Action Switch
1.39 in
Height - Snap Action Switch
1.12 in
Width - Snap Action Switch
1.82 in
Depth - Snap Action Switch
0.64 in
Height
1.125"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Actuator Length
1.39"
Length
1.823"
Depth
0.64"
Mounting Dimension
1.00" Centers
Body Height
1.12 in
Overall Depth
0.64 in
Lever Actuator Length
1.39 in
Body Depth
0.64 in
Overall Height
1.12 in
Body Width
1.82 in
Overall Width
1.82 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Hinge Roller, Lever
AC Contact Rating - Snap Action Switch
15 A @ 240 V
Contact Form- Switches
DPDT
Voltage Rating
125/250VAC
Terminal Type
1/4" Quick Connect
Type of Actuator
Hinge Roller Lever
Housing Material
Phenolic Case and Cover
Max. Pretravel
0.25 in
Release Force
1.4 ozf
Current Rating
15a
Series
S
Electrical Connection - Snap Action Switch
1/4 in Quick Connect
Contact Form
2NO/2NC
Watertight - Snap Action Switch
No
Differential Travel
0.093 in
Operating Temp. Range
-40 Degrees to 221 Degrees F
Operating Force
7.48 oz
Over Travel
0.187 in
Standards
CE, CSA, UL Listed
AC Contact Rating
15 A @ 240 V
Operating Temperature - Minimum
-40 Degrees F
Operating Force - Maximum
7.48 ozf
Differential Travel - Maximum
0.093 in
Overtravel
0.187 in
Operating Temperature - Maximum
221 Degrees F
Actuator Style
Hinge Roller Lever
Electrical Connection
Quick Connect
Pretravel
0.25 in
Center Mounting Hole Distance
1 in
Body Material
Phenolic

Description

Snap Action Switch, Hinge Roller, Lever, AC Contact Rating - Snap Action Switch 15 A @ 240 V, Contact Form- Switches DPDT, Lever Actuator Length - Snap Action Switch 1.39 in, Height - Snap Action Switch 1.12 in, Width - Snap Action Switch 1.82 in, Depth - Snap Action Switch 0.64 in, Electrical Connection - Snap Action Switch 1/4 in Quick Connect, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series S
