  13. Snap Action Switch, Panel Mount, Plunger, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating

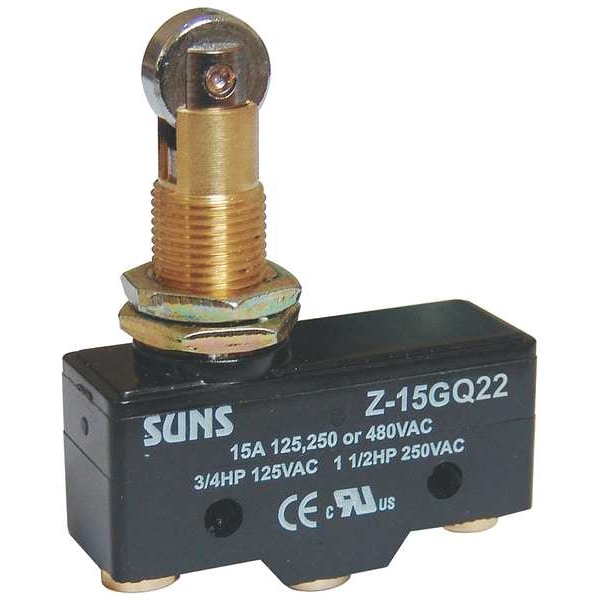

Zoro Select Snap Action Switch, Panel Mount, Plunger, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating 5JED9 - main

Snap Action Switch, Panel Mount, Plunger, Roller Actuator, SPDT, 15 A at 480 V AC Contact Rating

  • Mfr # 5JED9

  • Zoro # G0807186

product price: $13.25
/ea

Key Features

Actuator Type - Snap Action Switch
Panel Mount, Plunger, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
Contact Form- Switches
SPDT
Height - Snap Action Switch
1.7 in
Width - Snap Action Switch
1.94 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5JED9
Zoro #
G0807186
UPC #
190735527726
Country of Origin
China

Dimensions

Height - Snap Action Switch
1.7 in
Width - Snap Action Switch
1.94 in
Actuator Length
1.94"
Length
1.94"
Height
1.7"
Mounting Dimension - Snap Action Switch
1.00 in Centers
Mounting Dimension
1.00" Centers
Body Width
1.94 in
Roller Diameter
12.5 mm
Overall Width
1.94 in
Body Depth
0.69 in
Roller Width
4 mm
Manufacturer Warranty Length
1 yr
Overall Depth
0.69 in
Body Height
1.7 in
Mounting Hole Diameter
3/16 in
Overall Height
1.7 in

Details

Item
Snap Action Switch
Actuator Type - Snap Action Switch
Panel Mount, Plunger, Roller
AC Contact Rating - Snap Action Switch
15 A @ 480 V
Contact Form- Switches
SPDT
Voltage Rating
125/250/480VAC
Operating Temp. Range
-13 Degrees to 185 Degrees F
Terminal Type
Screw
Watertight - Snap Action Switch
No
Operating Force
12.34 oz
Max. Pretravel
0.016 in
Electrical Connection - Snap Action Switch
Screw
Series
Microswitch
Differential Travel
0.002 in
Current Rating
15a
Release Force
4.02 ozf
Contact Form
SPDT
Over Travel
0.141 in
Housing Material
Phenolic Case and Cover
Type of Actuator
Panel Mount Roller Plunger
Standards
cRUus Component Recognized, CE
DC Contact Rating
0.5A @ 250 V
AC Contact Rating
15 A @ 480 V
Operating Temperature - Maximum
185 Degrees F
Pretravel
0.016 in
Actuator Style
Roller Plunger
Roller Material
Stainless Steel
Operating Force - Maximum
3.43 N
Differential Travel - Maximum
0.05 mm
Overtravel
0.141 in
Electrical Connection
Screw
Roller Adjustability
Fixed
Roller Position
Vertical Mount
Operating Temperature - Minimum
-13 Degrees F
Body Material
Phenolic
Resistance Properties
Non-Magnetic
Center Mounting Hole Distance
1 in

Description

Snap Action Switch, Panel Mount, Plunger, Roller, AC Contact Rating - Snap Action Switch 15 A @ 480 V, Contact Form- Switches SPDT, Height - Snap Action Switch 1.7 in, Width - Snap Action Switch 1.94 in, Electrical Connection - Snap Action Switch Screw, Mounting Dimension - Snap Action Switch 1.00 in Centers, Series Microswitch
