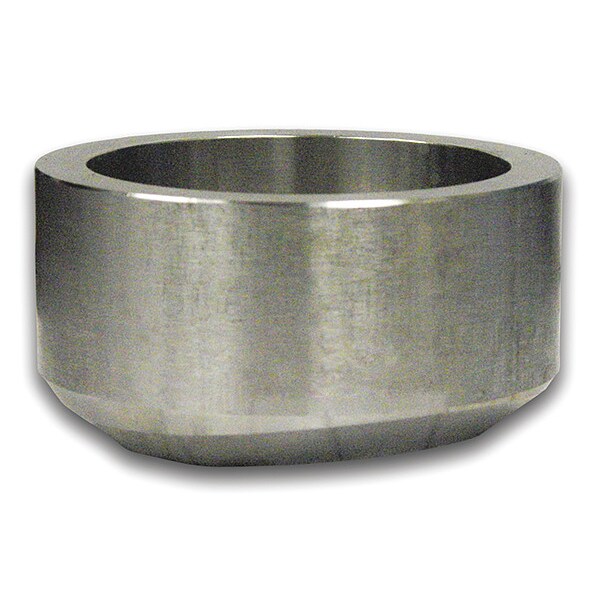

Socket Weld Outlet, 1/2 in, 304/304L Stainless Steel, Class 3000

  • Mfr # 100741350212
  • Zoro # G7813206
product price:
$
21.39
/ea

Key Features

Pipe Size - Pipe Fitting
1/2"
Specific Fitting Shape
Socket Weld Outlet
Pipe Fitting Material
304/304L Stainless Steel
Tube Size
1/2"
Fitting Connection Type
FSW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
100741350212
Zoro #
G7813206
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size - Pipe Fitting
1/2"
Tube Size
1/2"
Pipe Size (Fittings)
1/2"
Pipe Size
1/2"
Overall Length
1 3/64 in
Fitting Side B Nominal Pipe Size
1/2 in
Fitting Side A Outside Diameter
1 1/4 in
Fitting Side A Nominal Pipe Size
1/2 in
Wire Rope Length
1 3/64 in
Length
1 3/64 in

Details

Specific Fitting Shape
Socket Weld Outlet
Pipe Fitting Material
304/304L Stainless Steel
Fitting Connection Type
FSW
Fitting Schedule/Class
Class 3000
Basic Pipe Fitting Shape
Outlet
Basic Pipe Fitting Material
Metal
Item
Socket Weld Outlet
Specific Pipe Fitting Shape
Sockolet
Pipe Fitting Schedule/Class
Class 3000
Max. Pressure
3000 psi @ 100 Degrees F
Fittings Sub-Category
Sockolets
Standards
ASME B16.11, ASME B16.9, ASME B31.1, ASME SA182, ASTM A182, MSS SP-97
Application
Gases, Non-Potable Water, Oils
Includes Pre-Applied Thread Sealant
No
Color
Silver
Includes Seal
No
Class
Class 3000
Fitting Side B Gender
Female
Material Grade
304/304L
Fitting Side A Gender
Female
Fitting Side B Type
Socket
Maximum Operating Pressure
2,570 psi @ 100 Degrees F
Fitting Side A Type
Socket
Wire Color
Silver

Description

The ZORO SELECT - 100741350212 is a stainless steel socket weld outlet, designed for use in piping systems where small-bore or high-pressure connections are required. It features a recessed socket that accepts a branch pipe, which is secured by a fillet weld at the socket shoulder. This fitting provides a robust, leak-resistant connection with precise alignment, commonly used in applications involving natural gas, non-potable water, or oil systems.

Key Features:

  • Made from 304/304L stainless steel material for corrosion resistance and durability.
  • Fitting class rated for use in applications requiring up to Class 3000 pressure ratings.
  • Connection type is FSW (Fitting Socket Weld).
  • Nominal pipe size for each side is 1/2 inch; outside diameter on Side A is 1 1/4 inch.
  • Specific shape includes Socket Weld Outlet and Sockolet, suitable for small-bore and high-pressure systems.
  • Meets published industry standards ASTM A182/ASME SA182M, ASME B31.1, ASME B16.11, ASME B16.9.
  • Overall length of the fitting is 1 inch.
