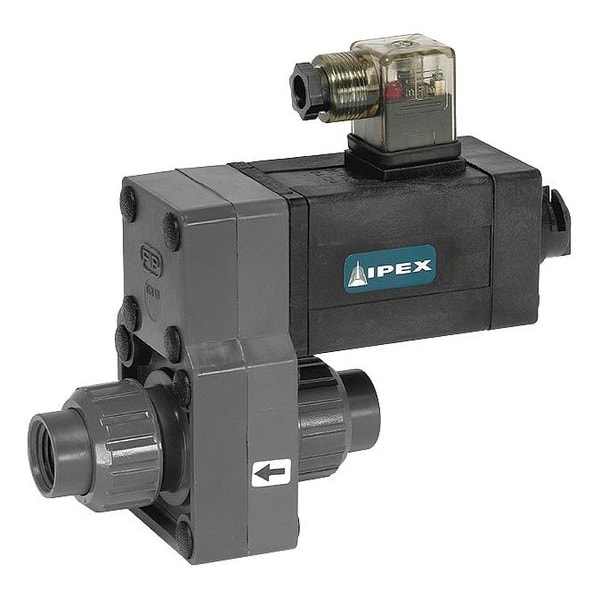

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Direct Acting, PVC

  • Mfr # 4GPR1

  • Zoro # G1933102

product price:
$
279.99
/ea
Free Shipping & Returns

Key Features

For Media
Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/4 in
Voltage
120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4GPR1
Zoro #
G1933102
UPC #
622454383548
Country of Origin
Italy

Dimensions

Nominal Pipe Size
1/4 in
Overall Height
5-1/32 in
Overall Length
3-5/8 in
Overall Width
2 in
Orifice Diameter
5/16 in
Wire Rope Length
3 5/8 in
Length
3 5/8 in

Details

For Media
Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Voltage
120V AC
Operation Type
Direct Acting
Seal Material
Viton
Operating Pressure Differential - Maximum
90 psi @ 73°F Light Oil, Water
Operating Pressure Differential - Minimum
0 psi
Item
Solenoid Valve
Body Material
PVC
Coil Enclosure
Watertight
Valve Design
2-Way/2-Position
Safe Working Water Pressure
30 psi
Electrical Connections
Wire Leads
Coil Insulation Class
F
Operating Pressure Differential Steam - Maximum
Not Rated
Operating Pressure Differential Hot Water - Maximum
Not Rated
NEMA Enclosure Rating
4
Includes Coil
Yes
Frequency
50 Hz
Operating Pressure Differential Water - Maximum
Not Rated
Operating Pressure Differential Air/Inert Gas - Maximum
Not Rated
Coefficient of Volume (Cv)
0.95
Valve Positions
2-Position
Environmental Rating
Corrosive, Indoor, Outdoor
Airflow - Maximum
22 gpm
Fluid Temperature - Maximum
140 Degrees F
Wattage
12 W
Operating Pressure Differential Light Oil - Maximum
Not Rated
Flow Rate - Maximum
22 gpm

Description

The ZORO SELECT 4GPR1 is a 2-way, 2-position solenoid valve with a normally closed starting configuration. It uses a direct acting mechanism to control fluid flow by opening or closing the flow path with an energized coil. Constructed with a PVC body and Viton seals, rated for operation with water media, it features a maximum flow rate of 22 gallons per minute and a coefficient of volume (Cv) of 0.95. Maximum fluid temperature rating: 140°F and Differential pressure rating: 0 to 90 psi (at 73°F) for light oil and water. The product includes a coil and requires a 120V AC power supply at 50 Hz frequency.

Key Features:

  • Valve Design: 2-Way/2-Position, Normally Closed
  • Operation Type: Direct Acting
  • Body Material: PVC
  • Seal Material: Viton (FKM)
  • Maximum Flow Rate: 22 gpm
  • Coefficient of Volume (Cv): 0.95
  • Maximum fluid temperature rating: 140°F
  • Differential pressure rating: 0 to 90 psi (at 73°F) for light oil and water
  • Orifice Diameter: 5/16 in
  • Electrical Voltage: 120V AC
  • Wattage: 12 W
  • Frequency: 50 Hz
  • Coil enclosure: Watertight (NEMA 4)
  • Coil Insulation Class: F
  • Electrical Connections: Wire Leads
  • NEMA Enclosure Rating: 4
  • Nominal Pipe Size: 1/4 in
  • Includes Coil: Yes
  • Dimensions: 5-1/32 in height, 3-5/8 in length, 2 in width
