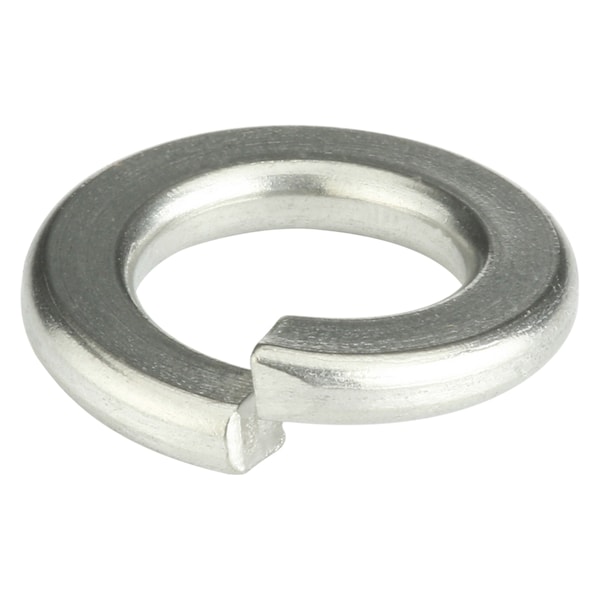

Split Lock Washer, For Screw Size 1/2 in Stainless Steel, Plain Finish, 10 PK
Mfr # U51450.050.0001
Zoro # G5344665
CAD Available
product price: $2.59
/pk 10, $0.26/eaKey Features
CAD Drawing
Material
Stainless Steel
Finish
Plain
Minimum Thickness
0.125 in
Maximum Thickness
1/8 in
Standards
ASME B18.21.1
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
U51450.050.0001
Zoro #
G5344665
UPC #
-
Country of Origin
Multiple
Dimensions
For Screw Size
1/2 in
Outside Diameter
0.869 in
Minimum Thickness
0.125 in
Maximum Thickness
1/8 in
Inside Diameter
0.502 in
Inside Diameter Tolerance
+0.01 in
Outside Diameter - Maximum
7/8 in
Inside Diameter - Maximum
33/64 in
Minimum Inside Diameter
1/2 in
Bearing Width - Minimum
1/8 in
Section Width - Minimum
11/64 in
Description
Split Lock Washer, Standard, 18-8 Stainless Steel, Fits Bolt Sizes 1/2 In., Inside Dia. 0.502 In., Outside Dia. 0.869 In., Thickness 0.125 In., Meets/Exceeds ASME B18.21.1, Package Quantity 10
