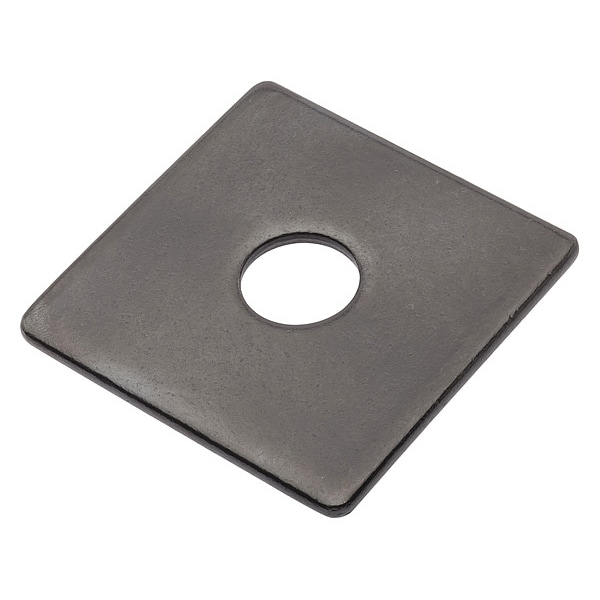

Square Washer, Fits Bolt Size 1/2 in , Low Carbon Steel Black Oxide Finish
Mfr # Z8940-BOX
Zoro # G2106778
CAD Available
product price: $4.19
/eaKey Features
CAD Drawing
Material
Low Carbon Steel
Finish
Black Oxide
For Screw Size
1/2 in
Outside Diameter
2 in
Minimum Thickness
0.112 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
Z8940-BOX
Zoro #
G2106778
UPC #
-
Country of Origin
United States
Dimensions
For Screw Size
1/2 in
Outside Diameter
2 in
Minimum Thickness
0.112 in
Maximum Thickness
0.128 in
Inside Diameter
0.563 in
Square Width
2 in
Washer Width
2 in
Washer Length
2 in
Details
CAD Available
Yes
Item
Square Washer
Material
Low Carbon Steel
Finish
Black Oxide
System of Measurement
Inch
Thickness Tolerance
+0.003/-0013 in
Rockwell Hardness
B55 - B85
Color
Black
Pack Size
Small Pack
Type
Square Washer
Resistance Properties
Corrosion-Resistant
Material Grade/Class
Not Graded
Dimensional Standards
AMPG 2017 SQ.01
FDA Approved
Not FDA Approved
Washer Type
Standard
Material Quality Standards
ASTM A108
Description
Square Washer, Dimensional Standards AMPG 2017 SQ.01, Material Steel, Material Grade/Class Case Hardened, Finish Black Oxide, For Screw Size 1/2 in, Inside Diameter 0.563 in, Outside Diameter Not Applicable, Maximum Thickness 1/8 in, System of Measurement Inch, Minimum Thickness 7/64 in, Color Black, Material Quality Standards ASTM A108, Pack Size Small Pack, Resistance Properties Corrosion-Resistant, Thickness Tolerance +/-0.031 in
