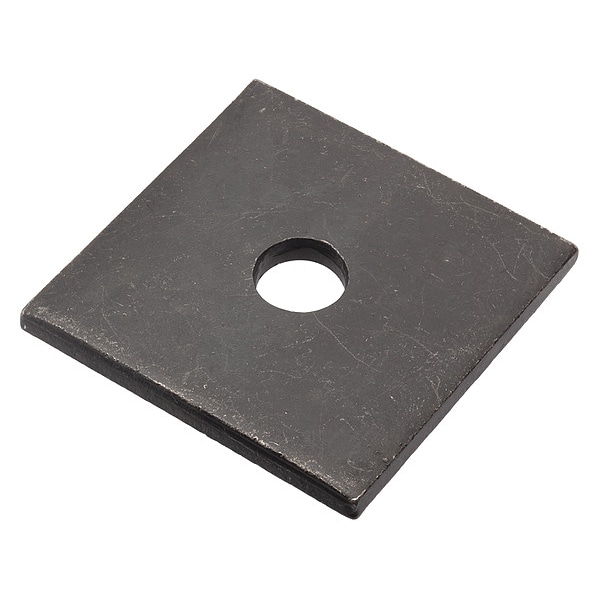

Square Washer, Fits Bolt Size 3/8 in , Low Carbon Steel Black Oxide Finish
Mfr # Z8936-BOX
Zoro # G2107283
CAD Available
product price: $4.99
/eaKey Features
CAD Drawing
Material
Low Carbon Steel
Finish
Black Oxide
Outside Diameter
2 in
Minimum Thickness
0.17 in
Maximum Thickness
0.2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
Z8936-BOX
Zoro #
G2107283
UPC #
-
Country of Origin
United States
Dimensions
For Screw Size
3/8 in
Outside Diameter
2 in
Minimum Thickness
0.17 in
Maximum Thickness
0.2 in
Inside Diameter
0.438 in
Square Width
2 in
Washer Width
2 in
Washer Length
2 in
Details
CAD Available
Yes
Item
Square Washer
Material
Low Carbon Steel
Finish
Black Oxide
System of Measurement
Inch
Thickness Tolerance
+0.012/-0.018 in
Rockwell Hardness
B55 - B85
Color
Black
Pack Size
Small Pack
Resistance Properties
Corrosion-Resistant
Type
Square Washer
Material Grade/Class
Not Graded
Dimensional Standards
AMPG 2017 SQ.01
FDA Approved
Not FDA Approved
Material Quality Standards
ASTM A108
Washer Type
Standard
Description
Square Washer, Dimensional Standards AMPG 2017 SQ.01, Material Steel, Material Grade/Class Case Hardened, Finish Black Oxide, For Screw Size 3/8 in, Inside Diameter 0.438 in, Outside Diameter Not Applicable, Maximum Thickness 13/64 in, System of Measurement Inch, Minimum Thickness 11/64 in, Color Black, Material Quality Standards ASTM A108, Pack Size Small Pack, Resistance Properties Corrosion-Resistant, Thickness Tolerance +/-0.031 in
