  11. Standard Plate Caster, 6 in Dia, 7 1/2 in Ht, 800 lb Load Rating, Polyurethane

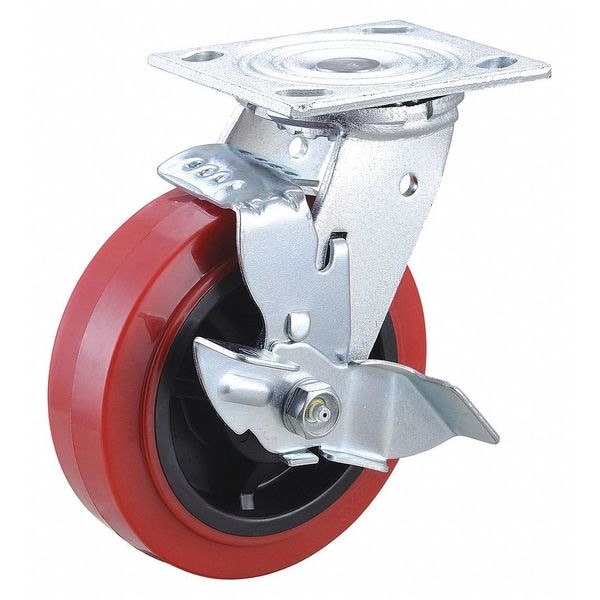

Zoro Select Standard Plate Caster, 6 in Dia, 7 1/2 in Ht, 800 lb Load Rating, Polyurethane 400K54 - main

Standard Plate Caster, 6 in Dia, 7 1/2 in Ht, 800 lb Load Rating, Polyurethane

  • Mfr # 400K54

  • Zoro # G3900263

product price: $24.15
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Side Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
400K54
Zoro #
G3900263
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Plate Thickness
7/32in
Mounting Bolt Dia.
3/8 in
Stem Dia.
No Stem
Swivel Radius
5 in
Overall Height
7-1/2in

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Side Brake
Load Rating
800 lb
Wheel Bearing Type
Roller
Wheel/Tread Color
Red
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Replacement Wheel
1ULK5
Application
General Purpose
Caster Stem Type
No Stem/Plate Included
Thread Guards
No
Frame Finish
Zinc Plated
Wheel Color
Red
Caster Brake Included
Yes
Extended Lead
No
Caster Temp. Range Available
Yes
Wheel Core Material
Polyolefin
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Swivel Construction
Kingpin
Load Capacity - Maximum
800 lb
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature Range
-40 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F

Description

Swivel, Plate Caster, Load Rating 800 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
