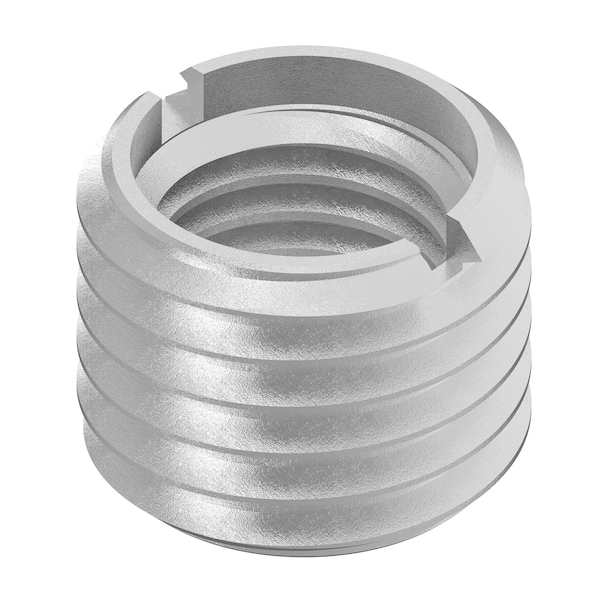

Standard Wall Self Locking Thread Insert, 3/4"-10 Int Thrd Sz, 316 Stainless Steel
Mfr # 316-12
Zoro # G309228133
CAD Available
product price: $16.39
/eaKey Features
CAD Drawing
Material
316 Stainless Steel
Overall Length
25/32 in
Insert Diameter
1 in
Wall Type
Standard Wall
Thread Type
Coarse, Fine
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
316-12
Zoro #
G309228133
UPC #
847554011706
Country of Origin
United States
Dimensions
Internal Thread Size
3/4"-10
Overall Length
25/32 in
Insert Diameter
1 in
External Thread Size
1"-8
Drill Bit Size
7/8 in
Minimum Installation Depth
7/8 in
Maximum Hole Diameter
0.875 in
Compatible Tap Size
1"-8
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 1 In.-8, Drill Bit Size 7/8, External Thread Fit 2A, External Thread Size 1 In.-8, Finish Plain, Insert Diameter 1 in, Internal Thread Fit 2B, Internal Thread Size 3/4 In.-10, Material Stainless Steel, Material Grade/Class 316, Maximum Hole Diameter 0.875 in, Minimum Installation Depth 7/8 in, Overall Length 25/32 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Fine
