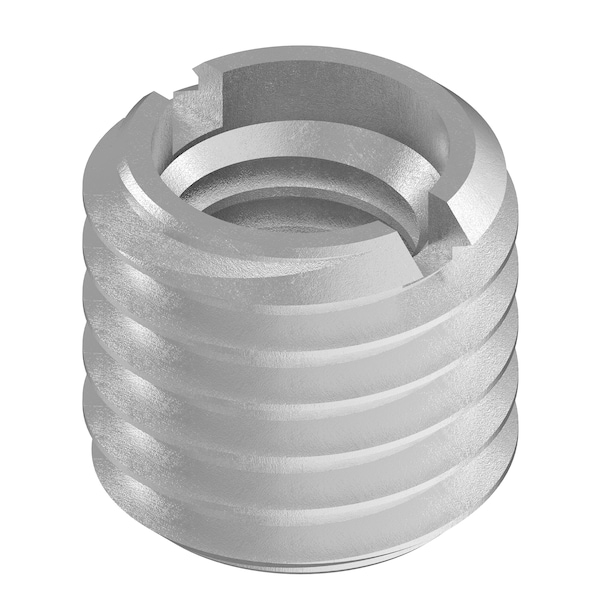

Standard Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, 316 Stainless Steel
Mfr # 316-6
Zoro # G709228191
CAD Available
product price: $11.79
/eaKey Features
CAD Drawing
Material
316 Stainless Steel
Overall Length
33/64 in
Insert Diameter
9/16 in
Wall Type
Standard Wall
Thread Type
Coarse, Fine
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
316-6
Zoro #
G709228191
UPC #
839137008739
Country of Origin
United States
Dimensions
Internal Thread Size
3/8"-16
Overall Length
33/64 in
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Drill Bit Size
31/64 in
Minimum Installation Depth
19/32 in
Compatible Tap Size
9/16"-12
Maximum Hole Diameter
0.484 in
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 9/16 In.-12, Drill Bit Size 31/64, External Thread Fit 2A, External Thread Size 9/16 In.-12, Finish Plain, Insert Diameter 9/16 in, Internal Thread Fit 2B, Internal Thread Size 3/8 In.-16, Material Stainless Steel, Material Grade/Class 316, Maximum Hole Diameter 0.484 in, Minimum Installation Depth 19/32 in, Overall Length 33/64 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Fine
