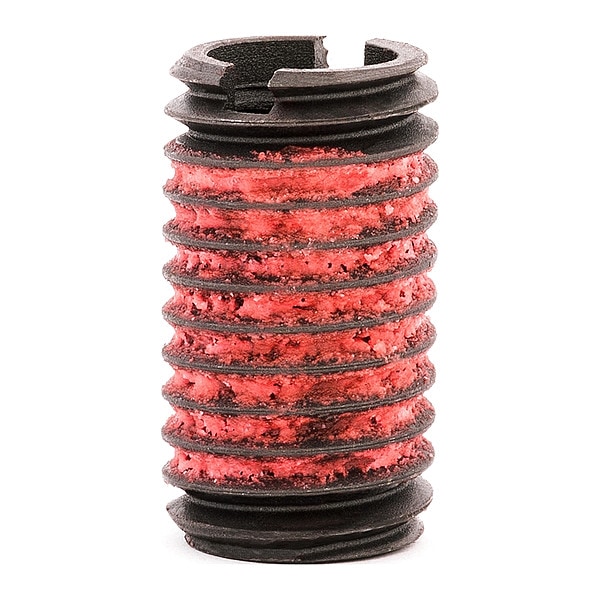

Standard Wall Self Locking Thread Insert, 3/8"-16 Int Thrd Sz, Steel, 5 PK
Mfr # 329-601-PK5
Zoro # G909228205
CAD Available
product price: $15.39
/pk 5, $3.08/eaKey Features
CAD Drawing
Internal Thread Size
3/8"-16
Material
Steel
Overall Length
1 in
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
329-601-PK5
Zoro #
G909228205
UPC #
839137008678
Country of Origin
United States
Dimensions
Internal Thread Size
3/8"-16
Overall Length
1 in
Insert Diameter
9/16 in
External Thread Size
9/16"-12
Drill Bit Size
31/64 in
Minimum Installation Depth
1 1/8 in
Maximum Hole Diameter
0.484 in
Compatible Tap Size
9/16"-12
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 9/16 In.-12, Drill Bit Size 31/64, External Thread Fit 2A, External Thread Size 9/16 In.-12, Finish Black Phosphate, Insert Diameter 9/16 in, Internal Thread Fit 2B, Internal Thread Size 3/8 In.-16, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.484 in, Minimum Installation Depth 1 1/8 in, Overall Length 1 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse
Restrictions
WARNING:
Cancer and Reproductive Harm
For more information go to
www.P65Warnings.ca.gov
