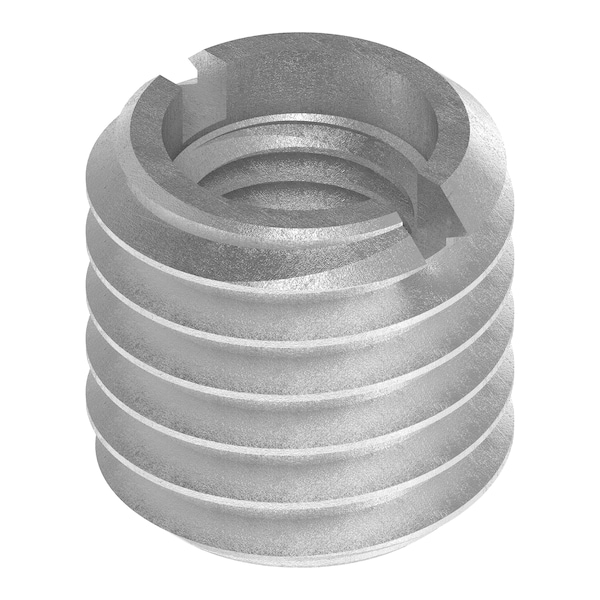

Standard Wall Self Locking Thread Insert, 5/16"-24 Int Thrd Sz, Steel

  • Mfr # EZ-329-524

  • Zoro # G209228141

CAD Available
product price:  $55.89
/ea

Key Features

CAD Drawing
Internal Thread Size
5/16"-24
Material
Steel
Overall Length
31/64 in
Insert Diameter
1/2 in
External Thread Size
1/2"-13
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EZ-329-524
Zoro #
G209228141
UPC #
847554010389
Country of Origin
United States

Dimensions

Internal Thread Size
5/16"-24
Overall Length
31/64 in
Insert Diameter
1/2 in
External Thread Size
1/2"-13
Drill Bit Size
27/64 in
Minimum Installation Depth
9/16 in
Compatible Tap Size
1/2"-13
Maximum Hole Diameter
0.422 in

Details

CAD Available
Yes
Item
Self Locking Thread Insert
Material
Steel
Wall Type
Standard Wall
Thread Type
Coarse, Fine
Installation Method
Drive Tool, Screwdriver
Tensile Strength (PSI)
78,300 psi
Includes
(10) Threaded Inserts, Drill, Tap and Drive-Tool
Brinell Hardness
163
Finish
Black Phosphate
Material Grade/Class
12L14
Drive Type
Slotted
System of Measurement
Inch
Features
Easy to use Solution for Repairing or Reinforcing Tapped Holes in Metal, Everything Needed for Installation in a Convenient Kit, Ideal for Soft Metals, Like Aluminum, Cast Iron and Magnesium
Compatible Material
Metal
External Thread Fit
2A
Thread Direction
Right Hand
Internal Thread Fit
2B

Description

Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 1/2 In.-13, Drill Bit Size 27/64, External Thread Fit 2A, External Thread Size 1/2 In.-13, Finish Black Phosphate, Insert Diameter 1/2 in, Internal Thread Fit 2B, Internal Thread Size 5/16 In.-24, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.422 in, Minimum Installation Depth 9/16 in, Overall Length 31/64 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type Coarse, Fine
